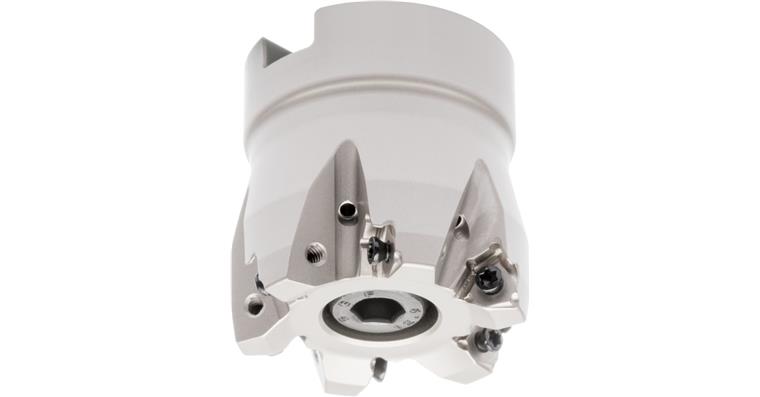

ATORN indexable insert angular milling cutter, diameter 40.0 mm T=6

ATORN indexable insert angular milling cutter, diameter 40.0 mm T=6

ATORN indexable insert angular milling cutter, diameter 40.0 mm T=6
Item no: 1017558 121

Online price:

Still in stock: 3

Application
Powerful angular milling cutter with particularly economic, double-sided reversible tip with 6 cutting edges. Flexible use for multiple machining steps, such as face, angular, trim and groove milling.

Execution
  • Wear-resistant, nickel-plated version
  • With internal cooling

Advantage
  • 6 cutting edges on double-sided indexable insert
  • special chip breaker geometry enables low power consumption
  • Large plate thickness for optimum process reliability
  • Optimised plane cutting edge for high surface quality


Brand: ATORN
Cutting edge diameter (D): 40 mm
Length (L1): 40 mm
Bore diameter (d): 16 mm
max. ap: 3,5 mm
Number of cutting edges: 6 PCS
Suitable for indexable inserts: WNE. 0403..

ATORN-No.: 12230400

EAN no.: 4050293534863

Product Datasheet
