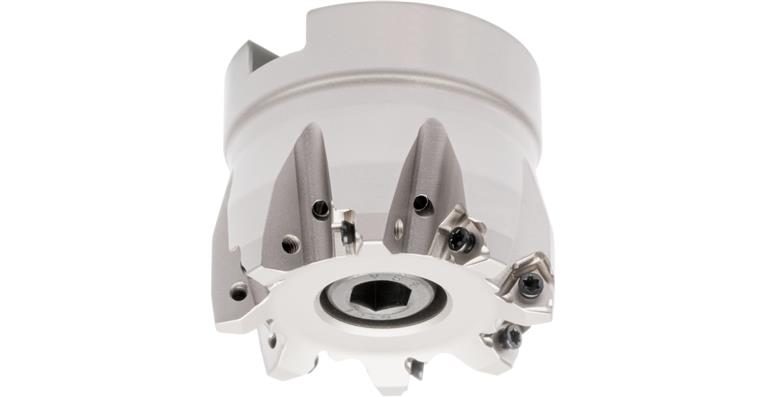

ATORN indexable insert angular milling cutter, diameter 50.0 mm T=8

ATORN indexable insert angular milling cutter, diameter 50.0 mm T=8

ATORN indexable insert angular milling cutter, diameter 50.0 mm T=8
Item no: 1017558 122

Online price:

Available in 5-7 working days.

Application
Powerful angular milling cutter with particularly economic, double-sided reversible tip with 6 cutting edges. Flexible use for multiple machining steps, such as face, angular, trim and groove milling.

Execution
  • Wear-resistant, nickel-plated version
  • With internal cooling

Advantage
  • 6 cutting edges on double-sided indexable insert
  • special chip breaker geometry enables low power consumption
  • Large plate thickness for optimum process reliability
  • Optimised plane cutting edge for high surface quality


Brand: ATORN
Cutting edge diameter (D): 50 mm
Length (L1): 50 mm
Bore diameter (d): 22 mm
max. ap: 3,5 mm
Number of cutting edges: 8 PCS
Suitable for indexable inserts: WNE. 0403..

ATORN-No.: 12230401

EAN no.: 4050293534870

Product Datasheet
