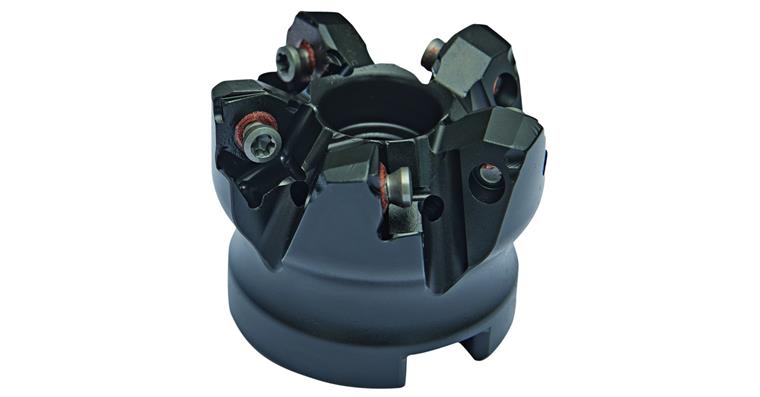

LIZZARD Eckfräser 90° 63x22x40mm ECO 6x XNEX/WNEU/WNMU/WNEX 0806..

LIZZARD Eckfräser 90° 63x22x40mm ECO 6x XNEX/WNEU/WNMU/WNEX 0806..

LIZZARD Eckfräser 90° 63x22x40mm ECO 6x XNEX/WNEU/WNMU/WNEX 0806..
Item no: 1017558 152

Online price:

Still in stock: 1

Application
For general shoulder, face, groove, circumferential and heel milling

Execution
  • Shoulder milling cutter 90° 40x16x40 mm ECO 4x XNEX/WNEU/WNMU/WNEX 0806..
  • Soft cutting owing to the positive installation position of the indexable insert
  • Stable milling behaviour
  • Axial runout < 0.03 mm
  • Concentricity < 0.03 mm
  • Precise 90° shoulder milling

Delivery
1x holder incl. indexable insert screw, without inserts


Brand: LIZZARD
Cutting edge diameter (D): 63 mm
Length (H): 40 mm
Bore diameter (d): 22 mm
max. ap: 7 mm
Number of cutting edges: 6 PCS
Coolant supply: Internal
Surface: Burnished

EAN no.: 4024496173600

Product Datasheet
