ATORN angular face milling head for VCGT220530 42.0 mm T=3

ATORN angular face milling head for VCGT220530 42.0 mm T=3

ATORN angular face milling head for VCGT220530 42.0 mm T=3
Item no: 1017562 101

Online price:

Still in stock: 2

Application
Ideal for processes such as excavation and plunge milling in aluminium and plastics with the highest usage values. The robust and precision-ground VPGT/VCGT reversible tip is ideal for plunge milling without a pilot bore thanks to its optimised shape and cutting geometry. Excellent chip removal thanks to polished cutting faces and large chip spaces; enables high cutting rates with minimal built-up edge formation.

Execution
  • Robust support design for high-performance milling
  • With internal cooling
  • Clamping screw tightening torque (indexable insert) M5 = 8 Nm

Advantage
  • Low cutting forces
  • Large corner radii for reduced wear
  • Very high material removal rate
  • Highest feed rates possible
  • Also ideal for cutting plastics


Brand: ATORN

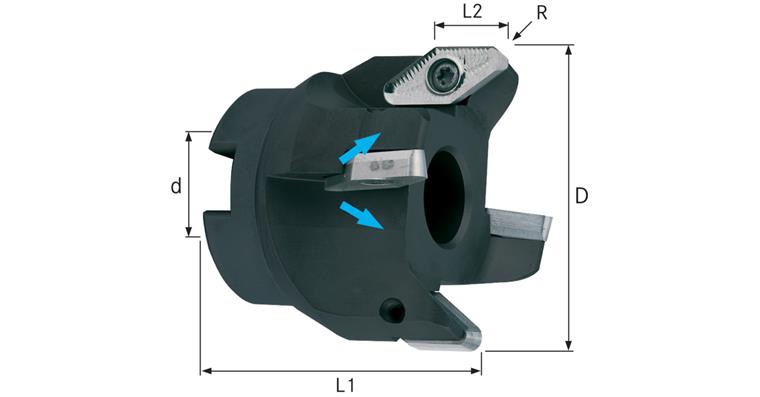

Cutting edge diameter (D): 42 mm
Length (L1): 55 mm
Bore diameter (d): 16 mm
max. ap: 15 mm
Number of cutting edges: 3 PCS

ATORN-No.: 10612068

EAN no.: 4050293061901

Product Datasheet
