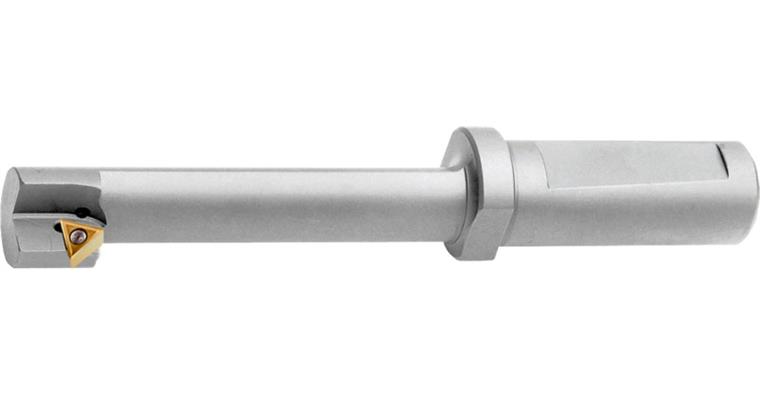

Reverse milling counterbore 45° countersink dia. 27 mm

Reverse milling counterbore 45° countersink dia. 27 mm

Reverse milling counterbore 45° countersink dia. 27 mm
Item no: 1017570 207

Online price:

Available in 5-7 working days.

Application
180° reverse counterbores with CC.. indexable inserts in the diameter range 15.00-31.00 mm, in the material groups of steel, stainless steel, non-ferrous metals, cast materials and special alloys for use in single part and series production.

Execution
Backing material made from high-grade steel with clamping surface in line with DIN 1835E

Advantage
  • Standard TC.. indexable inserts can be used, which optimises procurement and minimises tool costs
  • Precisely fitting inserts ensure optimal machining results even under difficult conditions
  • Nickel-plated tool for high corrosion resistance


Brand: ATORN
Number of cutting edges: 1 PCS
Coolant supply: External
Min. bore diameter (d min.): 21 mm
Length (L): 140 mm
Cantilever length (L1): 90 mm
Reverse machining clearance (L2): 70 mm
Max. insert depth (L3): 70 mm
Shank diameter (d): 20 mm
Collar diameter (D1): 25 mm
Travel dimension (e): 3,2 mm
Suitable for indexable inserts: TC.. 1102..
Max. cutting edge diameter: 27 mm
Min. cutting edge diameter: 21 mm
Min./max. cutting edge diameter: 21-27 mm

EAN no.: 4050293637052

Product Datasheet
