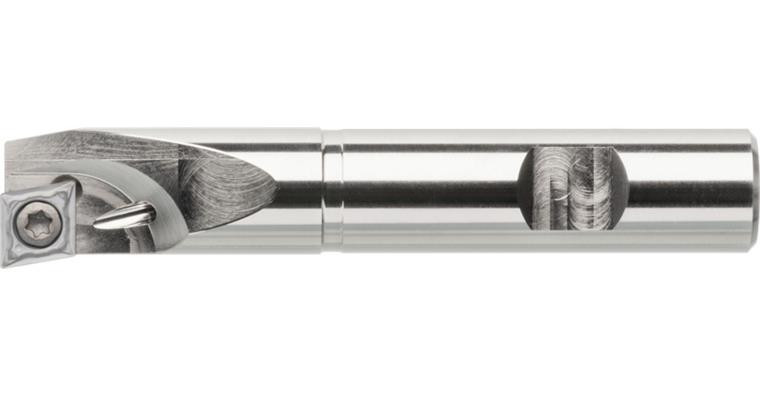

Indx. ins. core+c/s drll w IC, Weldon shnk DIN1835B, WPL CC. 0602.., dia.14.8mm

Indx. ins. core+c/s drll w IC, Weldon shnk DIN1835B, WPL CC. 0602.., dia.14.8mm

Indx. ins. core+c/s drll w IC, Weldon shnk DIN1835B, WPL CC. 0602.., dia.14.8mm
Item no: 1017576 206

Online price:

Available in 5-7 working days.

Application
180° countersinks with CC.. indexable inserts in the diameter range 10.00-33.00 mm, in the material groups of steel, stainless steel, non-ferrous metals, cast materials and special alloys for use in single part and series production.

Execution
Backing material made from high-grade steel with clamping surface in line with DIN 1835B

Advantage
  • Precisely fitting inserts ensure optimal machining results even under difficult conditions
  • Universal use in all material groups
  • Cost-efficient tool in comparison with mono-block solutions


Brand: ATORN
Number of cutting edges: 1 PCS
Tool holding device: HB parallel shank
Cutting edge diameter: 14,8 mm
Cantilever length (L2): 28 mm
Length (L1): 120 mm
Min. pilot hole diameter (F min): 3,5 mm
Shank diameter (d): 12 mm
Suitable for indexable inserts: CC..06
Coolant supply: Internal
Countersink angle: 90 Degree
Suitable for max. diameter: 40 mm
Suitable for min. diameter: 14,8 mm
Suitable for min./max. diameter: 14.8-40 mm
Cutting material: HSS
Effective length: 28 mm
Shank style: Weldon
Surface: Plain, oiled

EAN no.: 4050293111811

Product Datasheet
