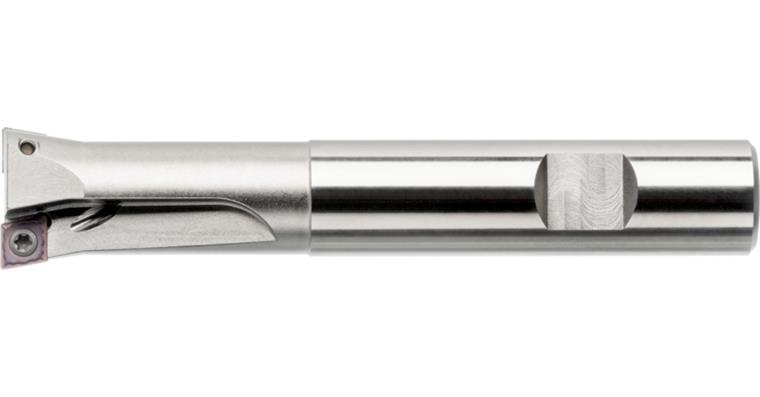

ATORN indexable insert countersink, T2 CC..09 27.0 mm HB

ATORN indexable insert countersink, T2 CC..09 27.0 mm HB

ATORN indexable insert countersink, T2 CC..09 27.0 mm HB
Item no: 1017577 112

Online price:

Available in 4-6 working days.

Application
180° countersinks with CC.. indexable inserts in the diameter range from 10.00–33.00 mm, in the material groups steel, stainless steel, non-ferrous metals, cast materials and special alloys for use in single part and series production.

Execution
backing material made from high-grade steel with clamping surface in line with DIN 1835B

Advantage
  • precision-engineered insert seat and two blades ensure optimum machining results and smooth running even under difficult operating conditions
  • universal use in all material groups
  • cost-efficient tool in comparison with mono-block solutions


Brand: ATORN
Number of cutting edges: 2 PCS
Coolant supply: Internal
Tool holding device: HB parallel shank
Cutting edge diameter (D): 27 mm
Cantilever length (L2): 55 mm
Length (L1): 128 mm
Min. pilot hole diameter (F min): 10 mm
Shank diameter (d): 20 mm
Suitable for indexable inserts: CC..09

ATORN-No.: 11114827

EAN no.: 4050293112511

Product Datasheet
