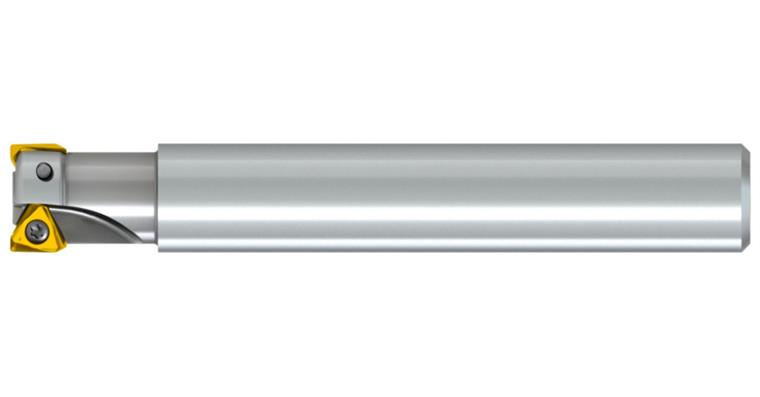

Fc. shl. mill. cut. 35A3R034A32-STN16-C TNGX 1606.. dia.35 mm straight sh. T3

Fc. shl. mill. cut. 35A3R034A32-STN16-C TNGX 1606.. dia.35 mm straight sh. T3

Fc. shl. mill. cut. 35A3R034A32-STN16-C TNGX 1606.. dia.35 mm straight sh. T3
Item no: 1017747 305

Online price:

Available for immediate delivery

Execution
  • 90° shoulder milling cutter with internal cooling
  • With shank in accordance with DIN 1835A

Advantage
  • Body surface-treated for a longer service life
  • Suitable for face milling, flat shoulder milling, plunge milling, ramping, progressive plunge milling, interpolation and flat groove milling


Brand: DORMER PRAMET
Cutting edge diameter (DC): 35 mm
Cantilever length (LU): 34 mm
Number of cutting edges (Z): 3 PCS
Length (OAL): 195 mm
Shank diameter (DCON MS): 32 mm
Suitable for indexable inserts: TN.. 1606..
Shank style: Cylindrical DIN 1835-A
Coolant supply: Internal
Cutting direction: Right-hand cutting
Surface: Nickel plated
Tool holding device: HA parallel shank
Coupon code: DORMER1017747305

Manufacturer part no.: 8020918

EAN no.: 3603603844643
