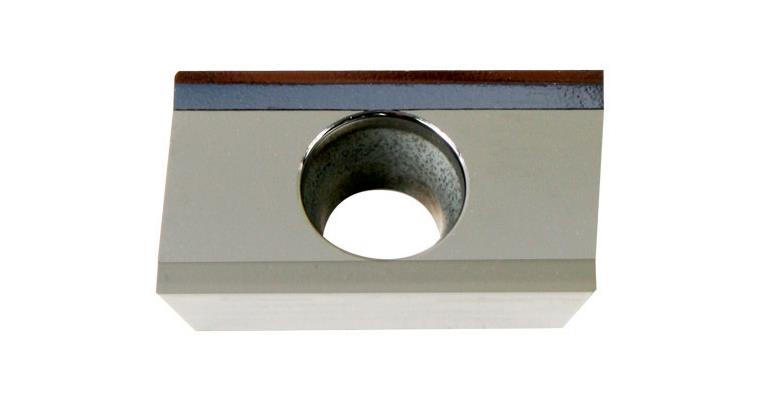

LIZZARD Fräswendeplatte APHT 100304 F HWP 40-M

LIZZARD Fräswendeplatte APHT 100304 F HWP 40-M

LIZZARD Fräswendeplatte APHT 100304 F HWP 40-M
Item no: 1017809 502

Online price:

Available in 5-7 working days.

Application
For milling


Material to be processed: Steel
Brand: LIZZARD
ISO name: APHT 100304 F
Surface: Uncoated
Cutting material: Carbide
Shape of indexable insert ISO: A
Clearance angle of indexable insert ISO: P
Tolerance class of indexable insert ISO: H
Indexable insert type ISO: T
Size of indexable insert ISO: 10
Thickness of indexable insert ISO: 03
Corner radius of indexable insert ISO: 04
Inner circle diameter (IC): 6,35 mm
Knife edge length (L): 10 mm
Mounting bore diameter (D1): 2,8 mm
Corner radius (RE): 0,4 mm
Thickness of indexable insert (S): 3,18 mm
Carbide type: HWP40M
Materials group: P (primary application)
Carbide type ISO: P30 | P50
Min./max. Vc in steel: 70-200 m/min
Number of pieces per packet: 10 PCS

EAN no.: 4024496177912

Product Datasheet
