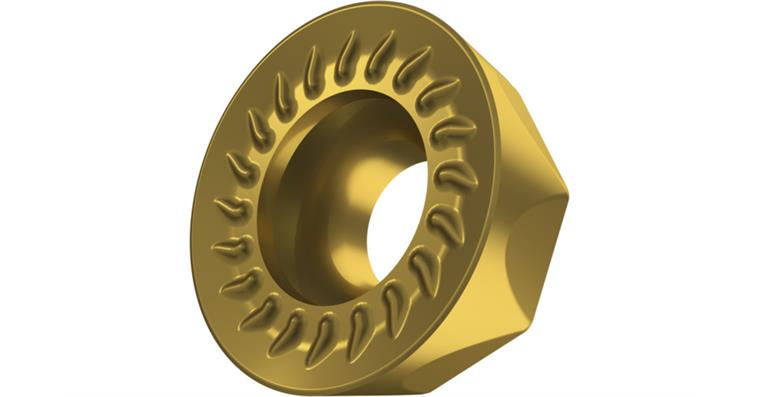

HHW indexable insert RCMT 2006MOSN-M

Versions

Item no: 1017825 141

Online price:

Catalogue price: You save:

Available for immediate delivery

Min. order quantity: 10

Brand: DORMER PRAMET
Material to be processed: Steel | Stainless steel | Special alloy
Surface: Coated
Cutting material: Carbide
Mounting bore diameter (D1): 6,5 mm
Thickness of indexable insert (S): 6,35 mm
Carbide type: M6330
Chip breaker code: M
Coating: PVD
Materials group: P (primary application) | M (secondary application) | S (primary application)
Carbide type ISO: P20 | P35 | M20 | M35 | S20 | S30
Machining conditions for indexable insert: Unfavourable
Min./max. Vc in steel: 175-270 m/min
Min./max. Vc in stainless steel: 125-190 m/min
Min./max. Vc in special alloys: 40-95 m/min
Cutting speed (aluminium long) suitability: 3
Cutting speed (aluminium long) Vc: 0
Cutting speed (aluminium short) suitability: 3
Cutting speed (aluminium short) Vc: 0
Cutting speed (brass long) suitability: 3
Cutting speed (brass long) Vc: 0
Cutting speed (brass short) suitability: 3
Cutting speed (brass short) Vc: 0
Cutting speed (bronze long) suitability: 3
Cutting speed (bronze long) Vc: 0
Cutting speed (bronze short) suitability: 3
Cutting speed (bronze short) Vc: 0
Cutting speed (cast) suitability: 3
Cutting speed (cast) Vc: 0
Cutting speed (graphite/carbon-fibre reinforced) suitability: 3
Cutting speed (graphite/carbon-fibre reinforced) Vc: 0
Cutting speed (hard 55) suitability: 3
Cutting speed (hard 55) Vc: 0
Cutting speed (hard 65) suitability: 3
Cutting speed (hard 65) Vc: 0
Cutting speed (nickel) suitability: 3
Cutting speed (nickel) Vc: 0
Cutting speed (plastic) suitability: 3
Cutting speed (plastic) Vc: 0
Cutting speed (steel 1000) suitability: 1
Cutting speed (steel 1000) Vc: 225 m/min
Cutting speed (steel 1300) suitability: 1
Cutting speed (steel 1300) Vc: 225 m/min
Cutting speed (steel 700) suitability: 1
Cutting speed (steel 700) Vc: 225 m/min
Cutting speed (super) suitability: 1
Cutting speed (super) Vc: 65 m/min
Cutting speed (titanium) suitability: 3
Cutting speed (titanium) Vc: 0
Cutting speed (VA mar) suitability: 2
Cutting speed (VA mar) Vc: 155 m/min
Cutting speed (VA off) suitability: 2
Cutting speed (VA off) Vc: 155 m/min

Manufacturer part no.: 7607720

EAN no.: 3603603519275
