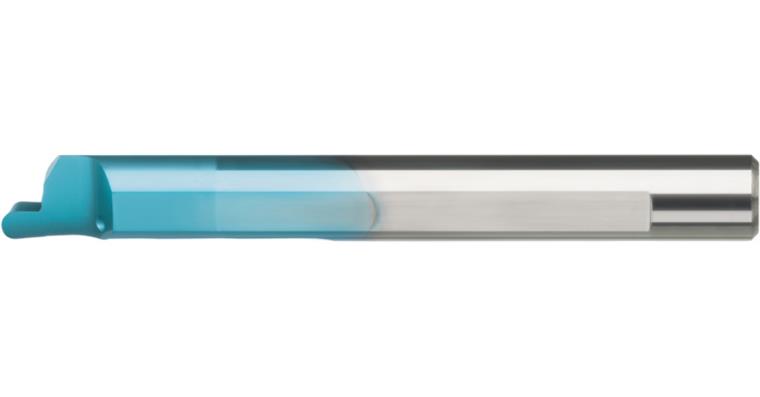

ATORN mini cutting insert AZR 6.0mm R1.0 L22 HC5615

ATORN mini cutting insert AZR 6.0mm R1.0 L22 HC5615

1018317388 ATORN mini cutting insert AZR 6.0mm R1.0 L22 HC5615
Item no: 1018317 388

Online price:

Available in 4-6 working days.

Application
For axial grooving with radius in steel, stainless steel, special alloys material groups, hard machining to 65HRC at high cutting speeds and mid-range cutting conditions.

Execution
Solid carbide cutting insert with internal cooling

Advantage
  • Very hard cemented carbide grade ensures low wear
  • Stable geometry for axial grooving
  • Innovative coating technology for universal use with very high service life requirements


Brand: ATORN
Shank diameter (D): 6 mm
ISO name: AZ
Length (L): 51 mm
Clearance length (L1): 22 mm
Radius (R): 1 mm
Recessing width (W): 2 mm
Plunge depth (T): 2,5 mm
Programming size (F): 2,95 mm
Min. bore diameter (D min.): 8 mm
Machining direction: Right
Carbide type: HC5615
Material to be processed: Steel | Stainless steel | Special alloy | Hardened material

ATORN-No.: 11947419

EAN no.: 4050293379747

Product Datasheet
