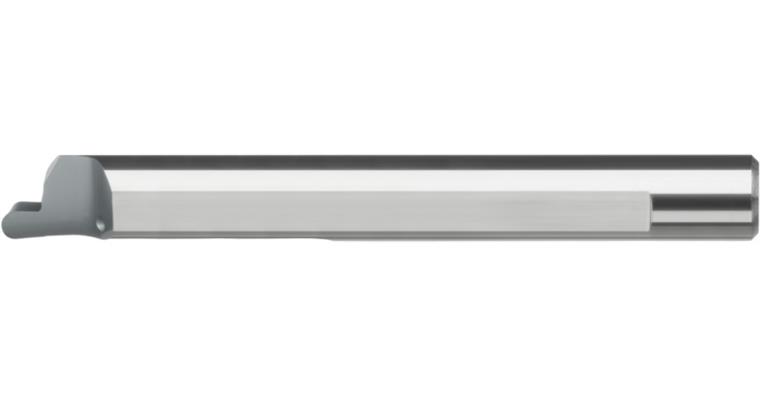

ATORN mini cutting insert AZR 4.0mm R0.75 L15 HW5615

ATORN mini cutting insert AZR 4.0mm R0.75 L15 HW5615

ATORN mini cutting insert AZR 4.0mm R0.75 L15 HW5615
Item no: 1018317 390

Online price:

Available in 4-6 working days.

Application
For axial grooving with radius in steel and (stainless steel) material groups at low to high cutting speeds and mid-range cutting conditions.

Execution
Solid carbide cutting insert with internal cooling

Advantage
  • Very hard cemented carbide grade ensures low wear
  • Stable geometry for axial grooving
  • Extremely sharp cutters ensure a process-reliable cut


Brand: ATORN
Shank diameter (D): 4 mm
ISO name: AZ
Length (L): 51 mm
Clearance length (L1): 15 mm
Radius (R): 0,75 mm
Recessing width (W): 1,5 mm
Plunge depth (T): 1,5 mm
Programming size (F): 1,95 mm
Min. bore diameter (D min.): 5 mm
Machining direction: Right
Carbide type: HW5615
Material to be processed: Stainless steel | Non-ferrous metal

ATORN-No.: 11947421

EAN no.: 4050293379761

Product Datasheet
