Carbide cutting insert MINI-CUT left LS14.022R11 full radius HC8620/TiAlN

Carbide cutting insert MINI-CUT left LS14.022R11 full radius HC8620/TiAlN

Carbide cutting insert MINI-CUT left LS14.022R11 full radius HC8620/TiAlN
Item no: 1018343 212

Online price:

Available in 6-8 working days.

Execution
  • Full radius
  • Carbide/HC8620 TiAlN-coated


Brand: DUEMMEL
Min./max. Vc in steel: 70-200 m/min
Min./max. Vc in stainless steel: 20-160 m/min
Min./max. Vc in non-ferrous metals: 60-600 m/min
Min./max. Vc in cast iron: 30-180 m/min
Cutting material: Carbide
Machining direction: Left
Max. depth (t max.): 4,0 mm
Min. drill hole diameter: 14,0 mm
Programming size 1 (s): 5,3 mm
Programming size 2 (d): 9,0 mm
Programming size 3 (f): 9,0 mm
Suitable for material group H: 2
Suitable for material group K: 1
Suitable for material group M: 1
Suitable for material group N: 2
Suitable for material group P: 1
Suitable for material group S: 1
Type description (für Klemmhalter Typ): 614
Width of cutting edge (b + 0,05): 2,2 mm

Manufacturer part no.: LS14.022R11/AL41F

EAN no.: 4050293285192

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • Carbide cut. insert MINI-CUT right RS008.0080 circlip grooves HC8620/TiAlN
  •
    Carbide cut. insert MINI-CUT right RS008.0130 circlip grooves HC8620/TiAlN
  •
    Carbide cut. insert MINI-CUT right RS011.0080 circlip grooves HC8620/TiAlN
  •
    Carbide cut. insert MINI-CUT right RS011.0160 circlip grooves HC8620/TiAlN
  •
    Carbide cut. insert MINI-CUT right RS014.0090 circlip grooves HC8620/TiAlN
  •
    Carbide cut. insert MINI-CUT right RS016.0080 circlip grooves HC8620/TiAlN
  •
    Carbide cut. insert MINI-CUT right RS016.0110 circlip grooves HC8620/TiAlN
  •
    Carbide cutting insert MINI-CUT left LS11.012R06 full radius HC8620/TiAlN
  •
    Carbide cutting insert MINI-CUT left LS11.018R09 full radius HC8620/TiAlN
  •
    Carbide cutting insert MINI-CUT left LS16.040R20 full radius HC8620/TiAlN
  •

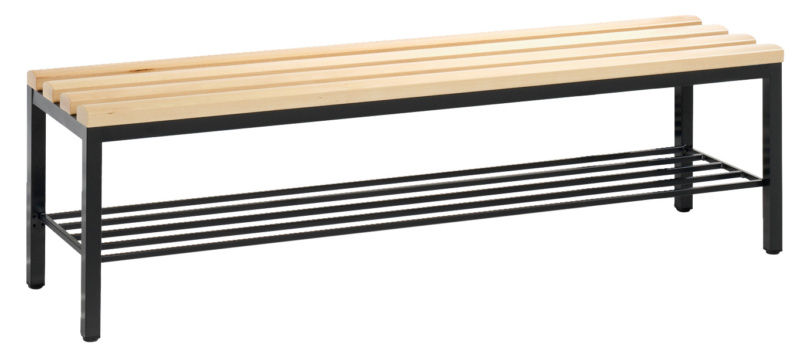

    Free-standing bench seat 4 feet with shoe rack HxWxD 420x1500x353 mm
  •

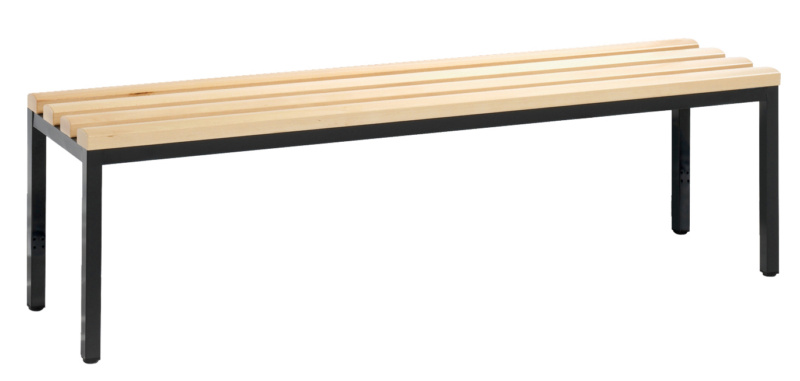

    Free-standing bench seat 4 feet without shoe rack HxWxD 420x1500x353 mm
