Carbide cut. insert MINI-CUT left LS14.3087.02 reverse swivel plate HC8620/TiAlN

Carbide cut. insert MINI-CUT left LS14.3087.02 reverse swivel plate HC8620/TiAlN

Carbide cut. insert MINI-CUT left LS14.3087.02 reverse swivel plate HC8620/TiAlN
Item no: 1018347 203

Online price:

Available in 6-8 working days.

Execution
Carbide/HC8620 TiAlN-coated

Notes
Ap max. = max. cutting depth
Angle W2 = 30°

Brand: DUEMMEL
Cutting material: Carbide
Machining direction: Left
max. ap: 1,5 mm
Max. depth (t max.): 3,5 mm

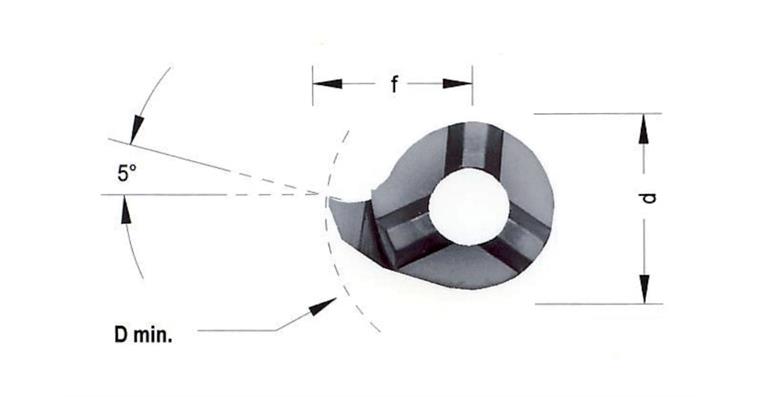

Min. drill hole diameter (D min.): 13,8 mm
Programming size 1 (s): 5,4 mm
Programming size 2 (d): 9,0 mm
Programming size 3 (f): 8,70 mm
Suitable for material group H: 2
Suitable for material group K: 1
Suitable for material group M: 1
Suitable for material group N: 2
Suitable for material group P: 1
Suitable for material group S: 1
Type description (für Klemmhalter Typ): 614

Manufacturer part no.: 11961332

EAN no.: 4050293286045

Product Datasheet
