ATORN SDHC clamp holder, positive, right, SDHC R/L 1616 H11

ATORN SDHC clamp holder, positive, right, SDHC R/L 1616 H11

ATORN SDHC clamp holder, positive, right, SDHC R/L 1616 H11
Item no: 1018407 502

Online price:

Available in 4-6 working days.

Application
For copy and longitudinal turning with DC 55° indexable insert.

Execution

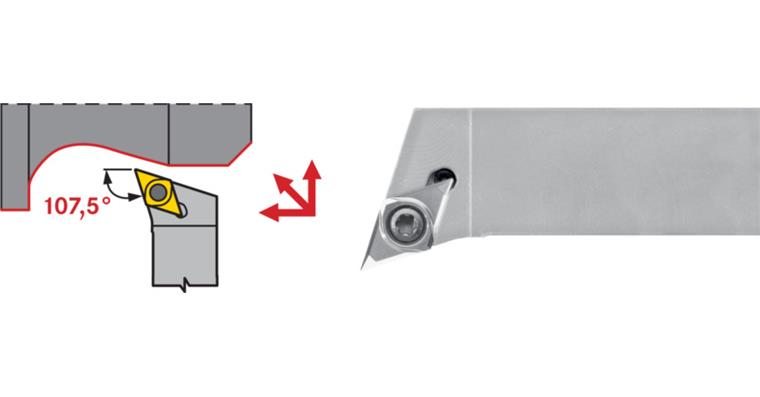

Precision-manufactured steel support, burnished, hardened, type D, working angle 107.5°, tip angle 55°, clearance angle 7°

Advantage
  • Streamlined geometry, optimised for contour lathe work
  • Positive geometry for the body ensures low cutting forces
  • Very good surface quality for medium infeed and finishing


Brand: ATORN
ISO name: SDHC R/L 1616 H11
Shaft height (h=h1=b): 16 mm
Shank width (b): 16 mm
Length (l1): 100 mm
Length of head (l2): 20 mm
Programming size (f): 10,4 mm
Suitable for indexable inserts (ISO): DC.. 11T3..
Tool design: Right
DIN: 4983

ATORN-No.: 11111331

EAN no.: 4050293543773

Product Datasheet
