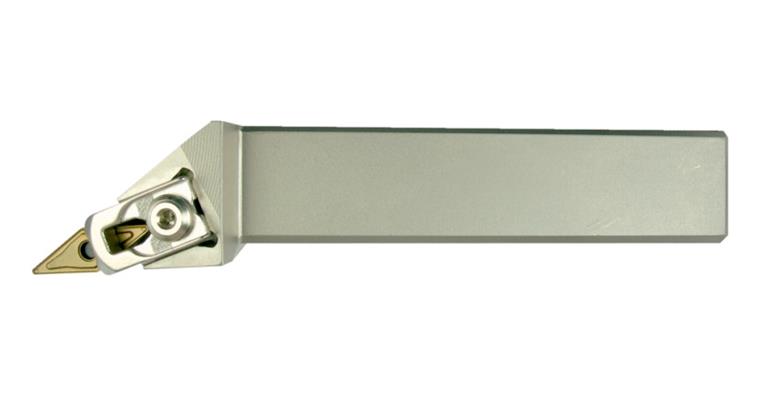

Ins. holder right neg. 0° tip angle 35° set. angle 93° MVJNR 2020 K16 f. rh.II

Ins. holder right neg. 0° tip angle 35° set. angle 93° MVJNR 2020 K16 f. rh.II

Ins. holder right neg. 0° tip angle 35° set. angle 93° MVJNR 2020 K16 f. rh.II
Item no: 1018464 101

Online price:

Available in 6-8 working days.

Application
For longitudinal turning and facing.

Execution
Approach angle 93°, for rhombus indexable inserts negative 0°, 35° tip angle


Brand: HHW
Shaft height (h=h1): 20 mm
Shank width (b): 20 mm
Length (l1): 125 mm
Length of head (l2): 32 mm
Suitable for indexable inserts (ISO): VN.. 1604..
Tool design: Right
Clearance angle: 0 Degree
Cutting edge length: 16 mm
DIN: 4983
Direction of clearance angle: Negative
Grip system: M
Setting angle: 93 Degree
Shape of indexable insert ISO: V

EAN no.: 4024496047833

Product Datasheet
