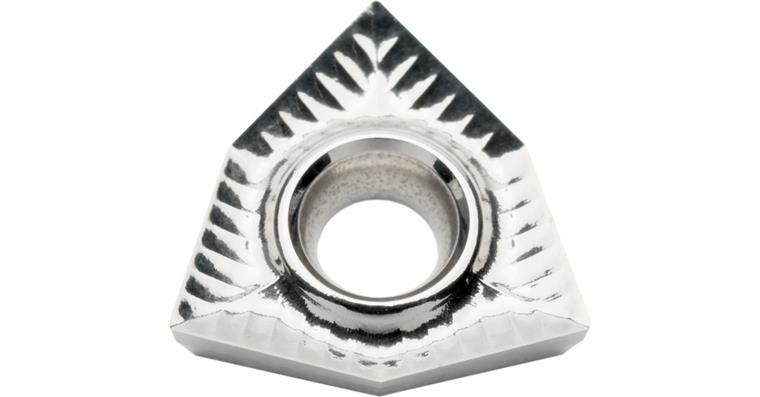

ATORN indexable insert LW610 WCHX070304

ATORN indexable insert LW610 WCHX070304

ATORN indexable insert LW610 WCHX070304
Item no: 1018476 407

Online price:

Available for immediate delivery

Application
For face and longitudinal turning, drilling, countersinking and chamfering.

Execution
3-tip indexable insert, uncoated

Advantage
  • Innovative cutting geometry with extra sharp cutters for the process-reliable machining of non-ferrous metals
  • Very hard substrate ensures long service life
  • Very good chip breaking by chip breaker


Brand: ATORN
ISO name: WCHX070304
Radius: 0,4 mm
min./max. ap: 3.0-6.5 mm
Carbide type: HW7310
Material to be processed: Non-ferrous metal | Cast metal
Min./max. Vc in non-ferrous metals: 200-1000 m/min
Min./max. Vc in cast iron: 100-180 m/min
f min./max.: 0.01-0.13 mm/U
Number of pieces per packet: 10 PCS

ATORN-No.: 12230278

EAN no.: 4050293427448

Product Datasheet
