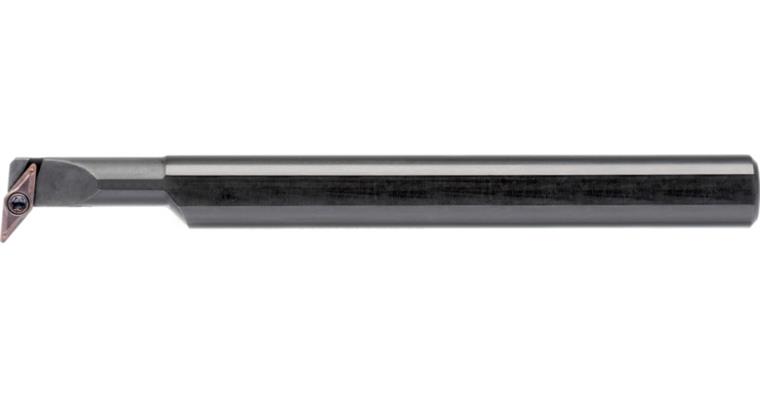

ATORN SVLC boring bar, steel, positive, right, A 10H SVLC R/L 07

ATORN SVLC boring bar, steel, positive, right, A 10H SVLC R/L 07

1018511101 ATORN SVLC boring bar, steel, positive, right, A 10H SVLC R/L 07
Item no: 1018511 101

Online price:

Still in stock: 1

Application
For longitudinal and copy turning with VC indexable insert 55°

Execution
Precision-manufactured boring bar, steel, with internal cooling, type V, pitch angle 95°, tip angle 35°, clearance angle 7°

Advantage
  • Slender geometry for longitudinal and copy turning
  • Positive geometry for the body ensures low cutting forces


Brand: ATORN
ISO name: A 10H SVLC R/L 07
Min. bore diameter (D min.): 12,5 mm
Shank diameter (d): 10 mm
Cutting edge height (h1): 7,5 mm
Clearance length (l2): 22 mm
Length (l1): 100 mm
Clamping surface height (h): 9 mm
Programming size (f): 7 mm
Suitable for indexable inserts (ISO): VC.. 0702..
Tool design: Right
DIN: 8024

ATORN-No.: 12230060

EAN no.: 4050293390544

Product Datasheet
