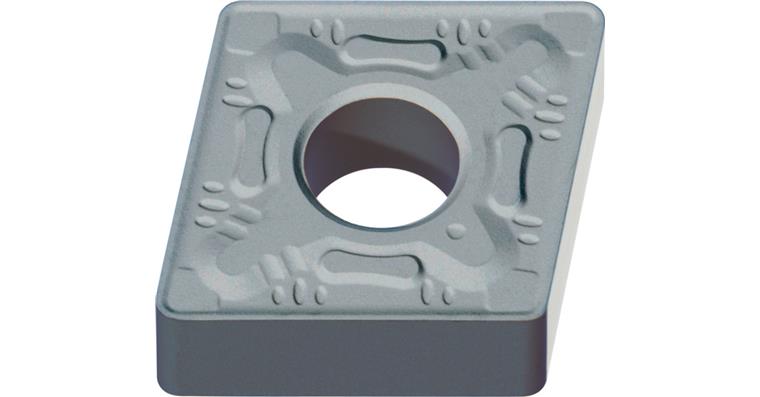

ATORN indexable insert, negative, CNMG 120412-RP HC7620

ATORN indexable insert, negative, CNMG 120412-RP HC7620

ATORN indexable insert, negative, CNMG 120412-RP HC7620
Item no: 1018554 222

Online price:

sold out

Application
For longitudinal turning and facing with a wide infeed range and stable cutting geometry in moderate cutting conditions

Execution
Sintered cemented carbide indexable insert

Advantage
  • Perfect combination of wear resistance and durability, for high process stability and broad range of applications
  • Very robust and stable cutting geometry, optimised for high feed rates in the medium to high infeed range in unfavourable cutting conditions


Brand: ATORN
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 12
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 12
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P20
Carbide type: HC7620
ISO-Code Rotating: CNMG 120412
Material to be processed: Steel | Cast metal
min./max. ap: 1.2-6 mm
f min./max.: 0.25-0.55 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,25 mm/r
max. f: 0,55 mm/r
max. ap: 6 mm
min. ap: 1,2 mm
Supply type: Roughing - Stable edge at raised feed values
Chip breaker code: RP
Min./max. Vc in steel: 80-350 m/min
Min./max. Vc in cast iron: 60-290 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870537

EAN no.: 4050293351118

Product Datasheet
