ATORN indexable insert DNMG 150604-MP1 ACP25T-1

ATORN indexable insert DNMG 150604-MP1 ACP25T-1

ATORN indexable insert DNMG 150604-MP1 ACP25T-1
Item no: 1018581 146

Online price:

Available in 6-8 working days.

Application
For longitudinal turning and copy turning with a wide infeed range with favourable cutting conditions

Execution
sintered carbide indexable insert

Advantage
  • very high level of hardness and wear resistance, for high service life requirements with favourable cutting conditions
  • positive soft-cutting chip geometry with a wide infeed range and stable cutting edges


Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 15
Thickness of indexable insert ISO: 06
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P25
Carbide type: ACP25T-1
ISO-Code Rotating: DNMG 150604
Material to be processed: Steel | Cast iron
min./max. ap: 0.5-6 mm
f min./max.: 0.1-0.6 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,1 mm/r
max. f: 0,6 mm/r
max. ap: 6 mm
min. ap: 0,5 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MP1
Min./max. Vc in steel: 115-270 m/min
Min./max. Vc in cast iron: 115-270 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12350806

EAN no.: 4066107044220

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN indexable insert CCMT 120412-MM2 ACM25T-1
  •
    ATORN indexable insert CNMG 120412-MM1 ACM25T-1
    8,59 €
  • ATORN indexable insert DCMT 070202-FM2 APM20T-1
  •
    ATORN indexable insert CNMG 090308-FP1 ACP15T-1
  •
    ATORN indexable insert DNMG 150412-RP4 ACP25T-1
  •
    ATORN indexable insert DNMG 150612-RP4 ACP15T-1
  •
    ATORN indexable insert SNMG 120408-FP1 ACP15T-1
  •
    ATORN indexable insert SNMG 190616-RP4 ACP15T-1
  •
    ATORN indexable insert TCMT 090204-FM2 ACM25T-1
  •
    ATORN indexable insert VBMT 160408-FM2 ACM25T-1
  •

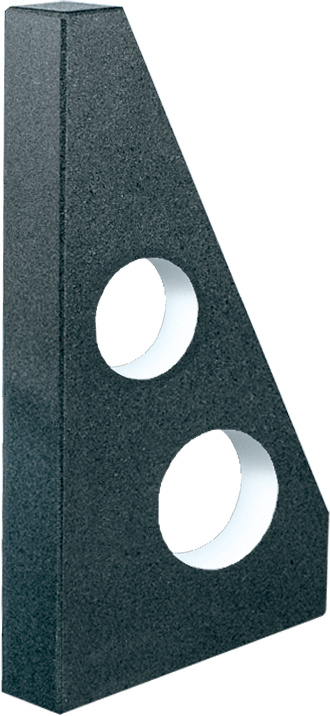

    ATORN angle standard 90 degrees 500 x 300 x 60 mm, triangular, acc. 00 0.004 mm
  •
