Brand: ATORN
Shape of indexable insert ISO: T
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 11
Thickness of indexable insert ISO: 02
Corner radius of indexable insert ISO: 08
Coating: PVD
Carbide type area ISO: M | S | P
Machining conditions for indexable insert: Medium
Carbide type ISO: P15 | P25 | M10 | M30 | S10 | S30
Carbide type: HC7820

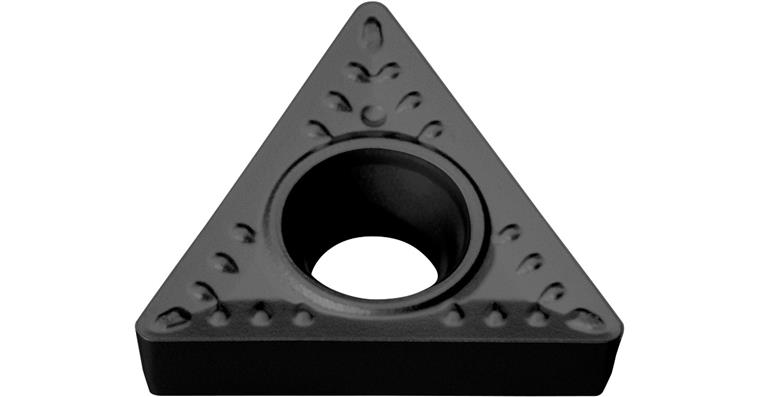

ISO-Code Rotating: TCMT 110208
Material to be processed: Stainless steel | Special alloy | Steel
min./max. ap: 0.6-3.0 mm
f min./max.: 0.16-0.30 mm/U
Materials group: S (primary application) | M (primary application) | P (primary application)
f min.: 0,16 mm/r
max. f: 0,30 mm/r
max. ap: 3,0 mm
min. ap: 0,6 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MM
Min./max. Vc in steel: 40-110 m/min
Min./max. Vc in stainless steel: 100-190 m/min
Min./max. Vc in special alloys: 40-60 m/min

ATORN-No.: 10875228

EAN no.: 4066107006310
