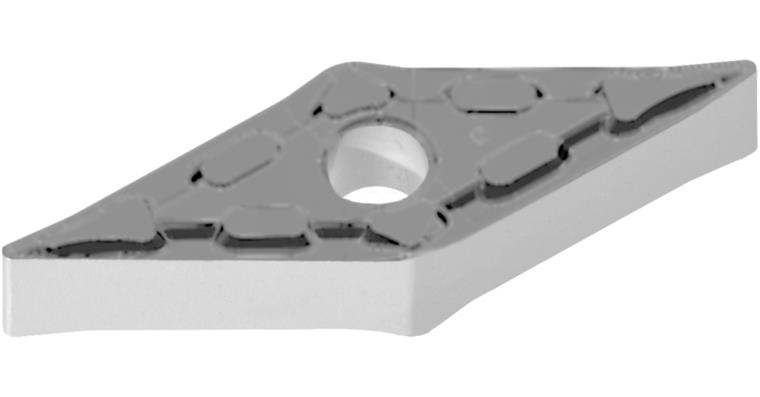

ATORN indexable insert VNMG 160408 finishing FM HC7520

ATORN indexable insert VNMG 160408 finishing FM HC7520

ATORN indexable insert VNMG 160408 finishing FM HC7520
Item no: 1018617 118

Online price:

Available in 4-6 working days.
Replacement article

Execution
ISO M coating CVD

Advantage
  • Perfect combination of toughness and resistance to wear, for a high degree of process stability and broad range of applications
  • Very positive chip breaker, ensures ideal chip breaking with small cutting depths


Brand: ATORN
Shape of indexable insert ISO: V
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Coating: CVD
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M20
Carbide type: HC7520
ISO-Code Rotating: VNMG 160408
Material to be processed: Stainless steel | Special alloy
min./max. ap: 0.5-2 mm
f min./max.: 0.1-0.18 mm/U
Materials group: M (primary application) | S (secondary application)
f min.: 0,1 mm/r
max. f: 0,18 mm/r
max. ap: 2 mm
min. ap: 0,5 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FM
Min./max. Vc in stainless steel: 170-260 m/min
Min./max. Vc in special alloys: 30-60 m/min

ATORN-No.: 10875250

EAN no.: 4066107006532

Product Datasheet
