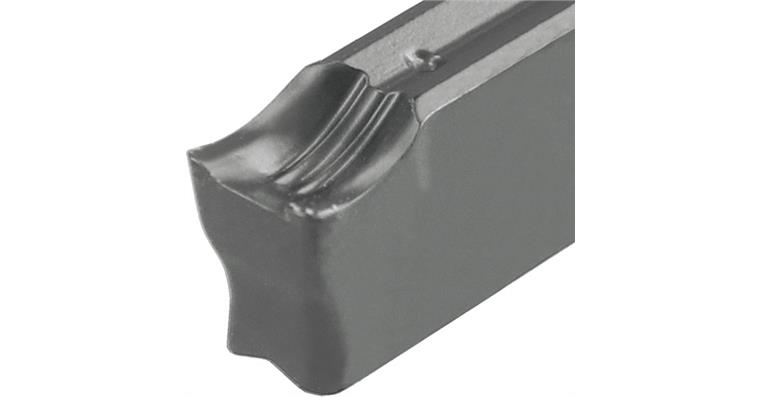

ATORN indexable cutting insert Z2 AD 4.00-0.3 L6-F ACP20G

ATORN indexable cutting insert Z2 AD 4.00-0.3 L6-F ACP20G

ATORN indexable cutting insert Z2 AD 4.00-0.3 L6-F ACP20G
Item no: 1018706 207

Online price:

Available in 6-8 working days.

Application
For radial grooving and cutting with very positive and soft-cutting chip geometry.

Execution
Precision-sintered cutting insert, F geometry with extremely positive cutting edge

Advantage
  • Very low cutting forces and good chip control even at low feed rates.
  • Very good cutting performance in materials with low strength.
  • First choice for thin-walled components.


Brand: ATORN
f min./max.: 0.06-0.2 mm/U
Recessing width (W): 4 mm
Radius (R): 0,3 mm
Tool design: Left
Surface: Coated
Carbide type: ACP20G
Material to be processed: Stainless steel | Cast metal | Steel | Special alloy
Min./max. Vc in steel: 50-240 m/min
Min./max. Vc in stainless steel: 50-180 m/min
Min./max. Vc in cast iron: 80-200 m/min

ATORN-No.: 12370283

EAN no.: 4050293700657
