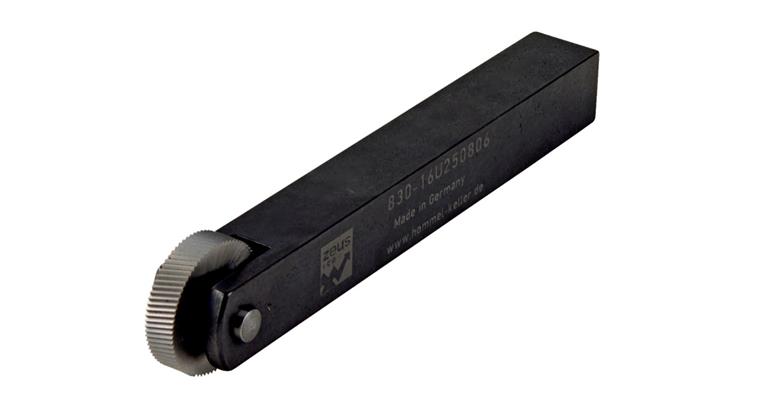

Knurling tool for conventional lathes sample RAA RBL RBR 15-200 mm

Knurling tool for conventional lathes sample RAA RBL RBR 15-200 mm

Knurling tool for conventional lathes sample RAA RBL RBR 15-200 mm
Item no: 1018965 101

Online price:

Still in stock: 9

Application
For conventional lathes.
Knurling patterns: RAA, RBL, RBR, RGE, RGV, RKE, RKV.
Precision pressure knurls:
1x shape AA (RAA)
1x shape BL 30° (RBL)
1x shape BR 30° (RBR)
1x shape GV (RGE)
1x shape GE (RGV)
1x shape KV (RKE)
1x shape KE (RKV)

Execution
Special surface hardening for increased wear resistance

Delivery
Delivered without precision pressure knurl (see art. no. 1018970-1018974).


For min./max. workpiece diameter (Für Werkstück-Ø min./max.): 15-200 mm
Shaft height (Schafthöhe a): 16 mm
Shank width (Schaftbreite b): 16 mm
Shaft length (Länge c): 130 mm
Width (Breite d): 18 mm
Suitable for knurling size: 20 x 8 x 6 mm
Knurling shape created on workpiece (DIN 82): RKV | RAA | RBL 30° | RBR 30° | RGE | RGV

Manufacturer part no.: RW830-16U250806

EAN no.: 4030741007880

Product Datasheet
