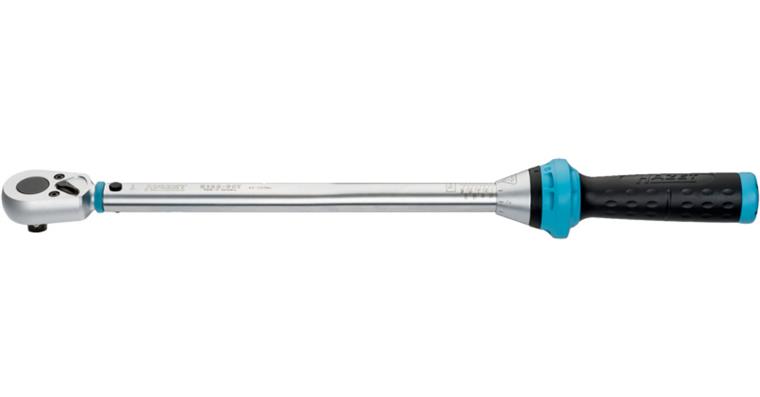

HAZET - Torque wrench 1/2 inch 40-200 Nm tolerance 3 % type 5122-3CT

Application
Easy-to-use reversible ratchet. Wide range of applications for controlled screw tightening in tyre servicing, motorcycle, car and commercial vehicle servicing as well as various applications in industry and trade.

Execution

Accuracy +/- 3 % or 4 % from the scale value (in actuation direction)
Perceptible (quick-release) and audible (click sound)
Optimised sealing ring for protection against foreign bodies
Handle with improved grip for easier power transmission
Easy-to-read, high-contrast scale
Safe locking of the setting values using the locking function on the swivel ring
Openings on the locking swivel ring can be used to attach rope loops
Integrated reversing lever
DIN 3120, ISO 1174-1, tested in accordance with DIN EN ISO 6789-2:2017
Made in Germany

Advantage

Setting aid with ratchet points for optimised user guidance ensures safe and quick setting of the desired torque value by twisting the handle
Permanent readability thanks to laser marking of the scale sleeve
Lock symbols indicate the respective locking state
Ratchet repair set for customer use enables decades-long use
Long-term endurance tests on HAZET torque wrenches in the 5000 and 6000 series have shown that it is no longer necessary to turn back to the smallest scale value

Delivery
Supplied in robust Hexa packing tube with factory calibration certificate and serial number.

Notes
Use a torque wrench with a push-in mount for anti-clockwise tightening.
