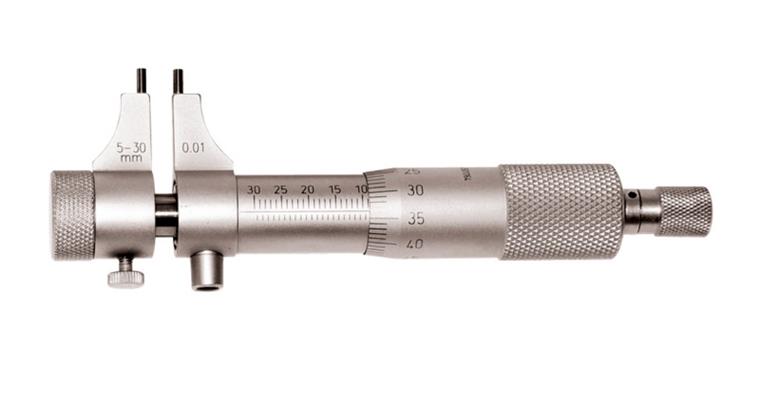

Internal micrometer single-sided measuring jaws MR 5-30 mm

Internal micrometer single-sided measuring jaws MR 5-30 mm

1031754101 Internal micrometer single-sided measuring jaws MR 5-30 mm
Item no: 1031754 101

Online price:

Still in stock: 4

Application
For measuring bores and offsets during turning, milling, grinding etc.

Execution
  • With measuring jaws on one side
  • Measuring sleeve, measuring drum and measuring jaws brushed chromium-plated
  • Convex carbide measuring surfaces
  • Sensing ratchet tool
  • Locking screw
  • Spindle pitch 0.5 mm, measuring drum dia. 17 mm

Delivery
1x internal micrometer
1x case


Brand: LIZZARD
Min./max. length measuring range: 5-30 mm
Vernier scale: 0.01 mm
Measuring depth: 5 mm
Error limit: 0,005 mm
Calibration Group: H
Measuring spindle increments: 0,5 mm
Other standard: Company standard

EAN no.: 4024496072194

Product Datasheet
