Microjet min. qty lubrication system pneumatic dir. assembly on the machine

Microjet min. qty lubrication system pneumatic dir. assembly on the machine

1019100103 Microjet min. qty lubrication system pneumatic dir. assembly on the machine
Item no: 1019100 103

Online price:

Available in 11-13 working days.

Application
For lathes, drills, milling machines, saws and sheet metal processing.

Execution
  • Minimum quantity lubrication system for direct mounting on the machine
  • The system can be controlled via the machine's existing 24 V DC power supply
  • The oil/air flow can be controlled separately and adjusted independently of the other
  • Device output connection: 2-phase coupling connector D=25 mm
  • Visual fill level indicator

Advantage
  • No disposal costs for cooling lubricants
  • No maintenance and cleaning costs
  • Low lubricant requirement
  • Residue-free operation
  • Clean working environment
    • Reduced workload for operating personnel

    • Active environmental protection

    • Simple, safe and clean handling

    • Optimised lubricant application

    • High production quality

Delivery
  • 3/2-way manual slide valve

  • Pressure regulator and pressure gauge for oil pressure monitoring

  • Safety valve

  • Fluid filling device T 1/2 inch

  • Stand bracket

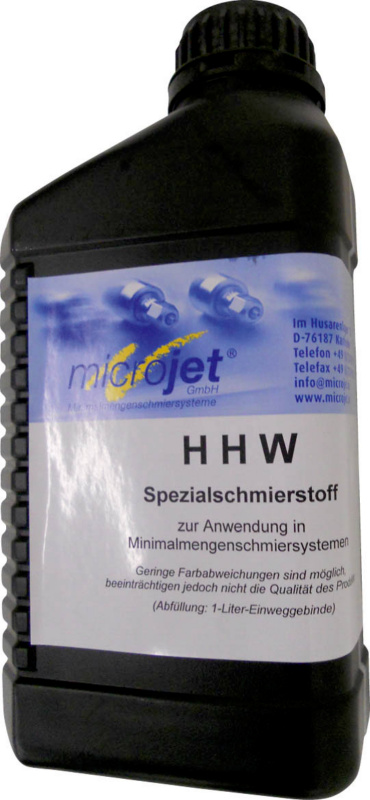

  • 1 litre of special oil

Accessories: Mounting bracket, detailed operating instructions incl. circuit diagram.
Optional: Electrical fill level monitoring via level switches.


Brand: MICROJET

Manufacturer part no.: 19100103

Safety Data Sheet Product Datasheet
