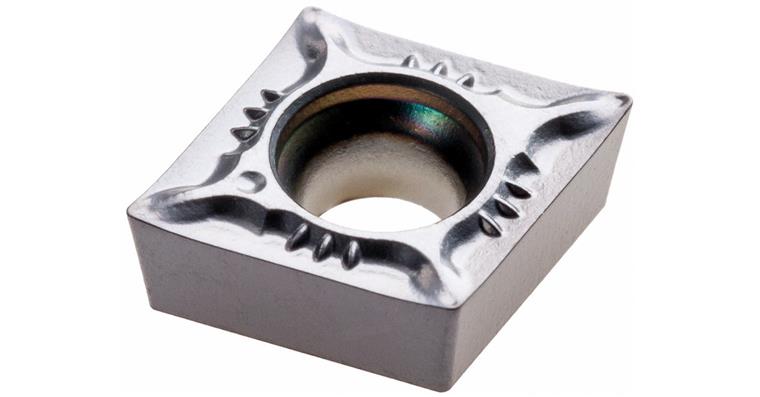

ATORN indexable insert CCMT09T302-FM1 APM25T

ATORN indexable insert CCMT09T302-FM1 APM25T

1019401144 ATORN indexable insert CCMT09T302-FM1 APM25T
Item no: 1019401 144

Online price:

Availability on demand

Execution
  • Sintered carbide indexable insert
  • ISO range P35/M25
  • Hardness HV 1460

Advantage
  • Long service life for best surface quality
  • Main application in machining of ferritic and martensitic stainless steels as well as austenitic usually acid-resistant stainless steels (Ni content above 20 %)


Brand: ATORN
Machining conditions for indexable insert: Medium
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 09
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 02
Coating: PVD
Carbide type area ISO: M
Carbide type ISO: M25
Carbide type: APM25T
ISO-Code Rotating: CCMT 09T302
Material to be processed: Stainless steel | Steel
min./max. ap: 0.2-2.5 mm
f min./max.: 0.07-0.25 mm/U
Materials group: M (primary application) | P (secondary application)
f min.: 0,07 mm/r
max. f: 0,25 mm/r
max. ap: 2,5 mm
min. ap: 0,2 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FM1
Angle of the tip: 80 Degree
Clearance angle: 7 Degree
Corner radius: 0.2
Cutting material: Carbide
Geometry of indexable insert: Positive
ISO standard: CCMT
Suitable for material group M: 1
Suitable for material group P: 2
Surface: Coated
Cutting speed (steel 1000) suitability: 2
Cutting speed (steel 1300) suitability: 2
Cutting speed (steel 700) suitability: 2
Cutting speed (VA mar) suitability: 1
Cutting speed (VA off) suitability: 1

EAN no.: 4050293728972

Product Datasheet
