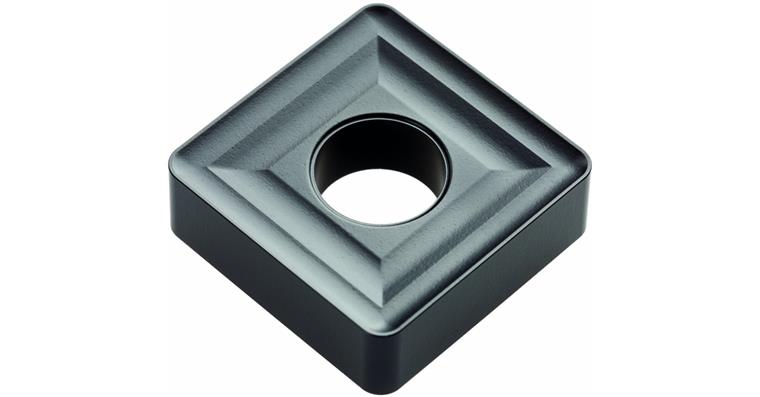

ATORN carbide indexable insert SNMM 250924-RP10 ACP25T

ATORN carbide indexable insert SNMM 250924-RP10 ACP25T

ATORN carbide indexable insert SNMM 250924-RP10 ACP25T
Item no: 1019418 109

Online price:

Available in 6-8 working days.

Notes
Carbide indexable insert SNMM 190616-RP10 ACP25T

Brand: ATORN
Shape of indexable insert ISO: S
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: M
Size of indexable insert ISO: 25
Thickness of indexable insert ISO: 09
Corner radius of indexable insert ISO: 24
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P25
Carbide type: ACP25T
ISO-Code Rotating: SNMM 250924
Material to be processed: Steel | Stainless steel | Cast metal
min./max. ap: 2.5-12.0 mm
f min./max.: 0.3-1.2 mm/U
Materials group: P (primary application) | M (secondary application) | K (secondary application)
f min.: 0,3 mm/r
max. f: 1,2 mm/r
max. ap: 12,0 mm
min. ap: 2,5 mm
Supply type: Roughing - Stable edge at raised feed values
Chip breaker code: RP1
Min./max. Vc in steel: 100-240 m/min
Min./max. Vc in cast iron: 120-250 m/min
Min./max. Vc in stainless steel: 70-210 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370711

EAN no.: 4050293728668

Product Datasheet
