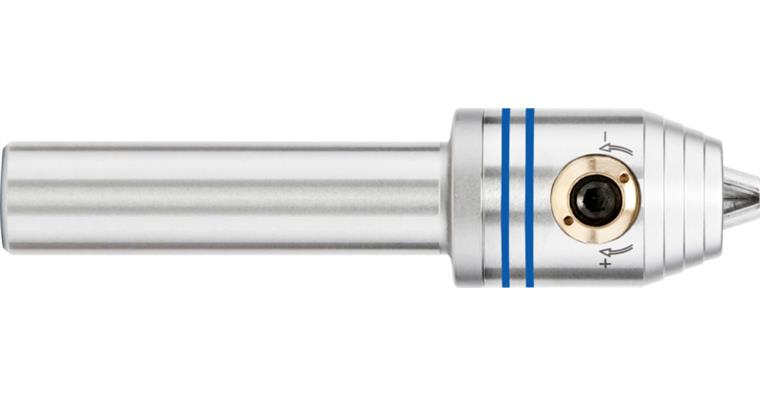

ATORN universal chuck 640 dia. 0.2-6.4 mm A=100 mm shank 20 mm, ICS

ATORN universal chuck 640 dia. 0.2-6.4 mm A=100 mm shank 20 mm, ICS

ATORN universal chuck 640 dia. 0.2-6.4 mm A=100 mm shank 20 mm, ICS
Item no: 1021157 104

Online price:

Available in 5-7 working days.

Application
Extremely flexible extension for HYDRO expansion, shrink-fit and collets. For high precision centric clamping of milling, drilling and reaming tools.

Execution
  • Speed range up to 60,000 rpm
  • Concentricity tolerance < 0.005 mm
  • Very wide clamping range
  • Chuck with spur gear
  • For clamping micro drill bits and milling cutters

Advantage
  • Very high retention forces
  • Simple operation from the side
  • Minimal interference contour for outstanding accessibility


Brand: ATORN
Min./max. clamping width: 0.20-6.4 mm
Shank diameter (d2): 20 mm
Outer diameter (D): 25 mm
Length (L): 100 mm
Length 2 (I): 60 mm
Max. length (L1 max. ): 104 mm
Max. tightening torque: 4 Nm
Torque transmission: 12 Nm
Concentricity tolerance: 0,005 mm
Coolant supply: Internal axial
Balancing quality: G 2.5 at 25,000 rpm

ATORN-No.: 21042011

EAN no.: 4050293358483

Product Datasheet
