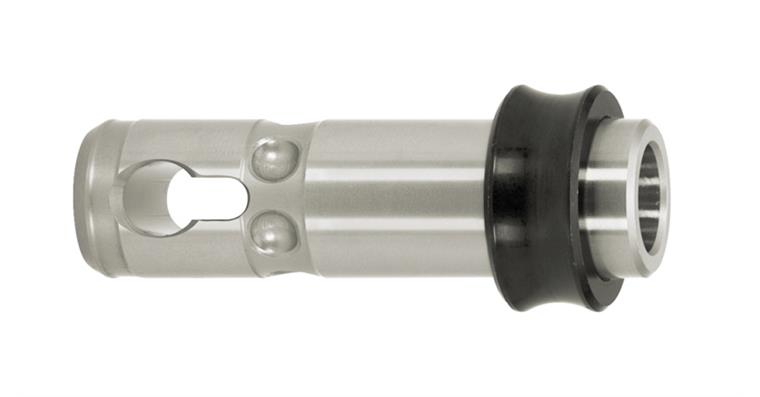

Morse taper insert sleeve FAHRION for chuck SF34 for MK 1

Morse taper insert sleeve FAHRION for chuck SF34 for MK 1

Morse taper insert sleeve FAHRION for chuck SF34 for MK 1
Item no: 1021323 105

Online price:

Available in 6-8 working days.

Application
For threaded quick-change chuck, art. no. 1021321. For mounting tools with Morse taper shanks and flat tangs in accordance with DIN 228 B and clamping sleeves in accordance with DIN 6329, art. no. 1022711 (for tools with straight shank).


Brand: FAHRION
Insert diameter (D2): 34,0 mm
Mount, on tool side: MK 1
Outer diameter (D): 46,0 mm
Projecting length (A): 22,0 mm
Shaft length (L1): 65,0 mm
Size: 2

Manufacturer part no.: E34-1

EAN no.: 4054631056383

Product Datasheet
