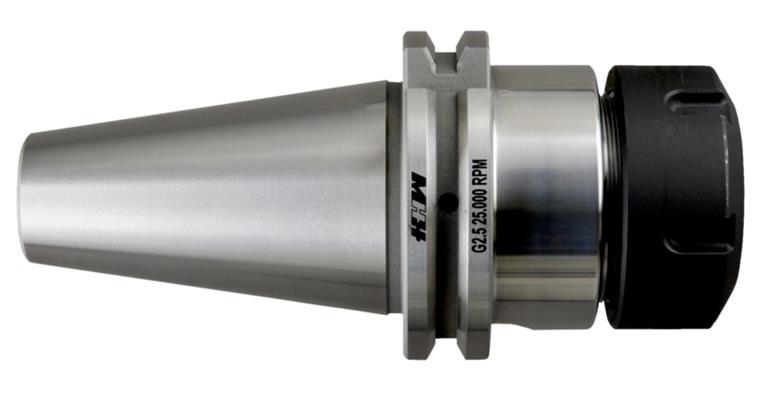

Collet chuck DIN 69871 ER40/472 E SK50 fine thread G2.5 25,000 rpm with ICS

Collet chuck DIN 69871 ER40/472 E SK50 fine thread G2.5 25,000 rpm with ICS

Collet chuck DIN 69871 ER40/472 E SK50 fine thread G2.5 25,000 rpm with ICS
Item no: 1021512 213

Online price:

Available in 8-10 working days.

Application
For clamping tools with straight shanks in collet chucks, DIN 6499 shape A and B.

Execution
  • Precision design
  • Precision-balanced, G 2.5 - 25,000 rpm
  • Ground external taper and internal cone
  • Max. concentricity less than 0.005 mm

Notes
For collet chuck sets, see art. no. 1021519.
For collet chucks, see art. no. 1021520-1021525 and 1021534-1021539. For pull studs, see art. no. 1021733-1021740.
For spanners, see art. no. 1021532.

Brand: HHW
Tool holding device: SK 50
Collet type: ER 40 (472 E)
Min./max. clamping range: 3.0-26.0 mm
Projecting length (A): 80,0 mm
Outer diameter (D): 63,0 mm
Clamping nut type: ER 40
DIN: 69871-1
Construction length: Short
Standard shank design: DIN 69871-1 AD
Tightening thread: M24

EAN no.: 4024496056354
