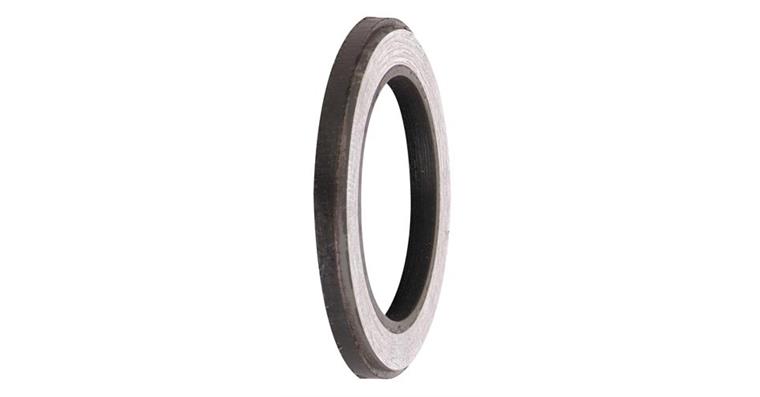

Sealing washer f. clamping nut Centro P HPC32-DI clamp. dia. 3mm D26.2xL2mm

Sealing washer f. clamping nut Centro P HPC32-DI clamp. dia. 3mm D26.2xL2mm

Sealing washer f. clamping nut Centro P HPC32-DI clamp. dia. 3mm D26.2xL2mm
Item no: 1021513 303

Online price:

Available in 6-8 working days.

Application
For sealing collet chucks with sealing washers.

Execution
  • For FAHRION CENTRO P collet chucks, art. nos. 1021507 and 21862
  • For clean internal cooling
  • Vulcanised sealing discs, can be used up to 80 bar
  • Clamping bridge 0.5 mm (+0.4/-0.1)

Notes
The sealing washers only function in conjunction with the appropriate Fahrion clamping nuts.
Fahrion clamping nut HPC 16 DI, HPC 25 DI and HPC 32 DI= art. nos. 1021509 002, 003, 004, 006

Brand: FAHRION
Model: HP 32-DI
Outer diameter: 20,2 mm
Length: 2,0 mm
Clamping diameter: 3,0 mm

Manufacturer part no.: HP32-DI 3MM

EAN no.: 4054631053306

Product Datasheet
