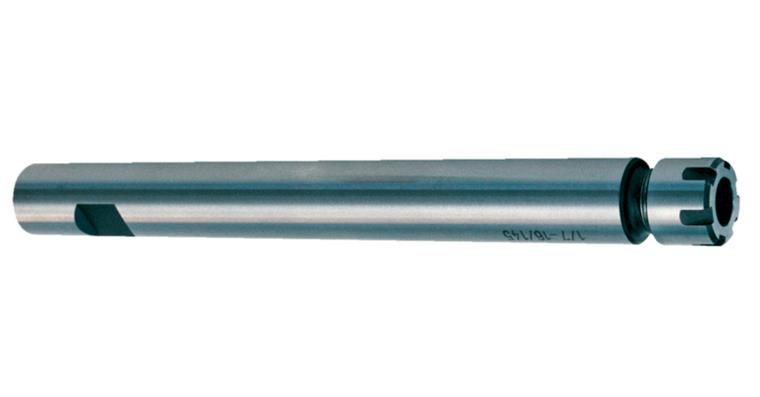

Chuck extension for collet chucks type ER 1-10 mm L=178 mm

Chuck extension for collet chucks type ER 1-10 mm L=178 mm

Chuck extension for collet chucks type ER 1-10 mm L=178 mm
Item no: 1021515 102

Online price:

Still in stock: 3

Application
Extension in Weldon mounts and collet chucks.

Execution
  • Cylindrical tool holder with Weldon shank
  • Smallest dimensions
  • Concentricity deviation of the taper to the internal cone less than or equal to 0.005 mm

Notes
For spanner, see art. no. 1021516.

Brand: LIZZARD
Collet type: ER 16 (426 E)
Min./max. clamping range: 1.0-10.0 mm
Outer diameter (D): 22,0 mm
Clamping nut type: ER 16 MINI
Length (L): 178,0 mm
Shank diameter (d): 20,0 mm
Tool holding device: HB parallel shank

EAN no.: 4024496056552

Product Datasheet
