Precision collet chuck GERC 16-B/426 E hole 2.5 mm

Precision collet chuck GERC 16-B/426 E hole 2.5 mm

Precision collet chuck GERC 16-B/426 E hole 2.5 mm
Item no: 1021535 204

Online price:

Available in 6-8 working days.

Application
For clamping tools with straight shanks.

Execution
  • For ATORN precision collet chucks and Fahrion CentroP precision collet chucks
  • With FAHRION|Protect corrosion protection for longer service life
  • Surface super-finished for enhanced retention force

Advantage
  • Collet chucks do not need to be replaced as often or can be used for longer for specific applications
  • Greater concentricity extends tool service life

Notes
For plastic collet chuck boxes, see AQURADO storage system, art. no. 1084134.
The clamping bridge is up to 1 mm smaller in each case, e.g. 9-8 mm, except in the case of 1-mm and 1.5-mm collet chucks (then only 0.5 mm).

Brand: FAHRION
Clamping diameter (d): 2,5 mm
Collet type: 426E GERC16-B
Outer diameter (D): 17,0 mm
Length (L): 27,5 mm
Clamping bypass: 1,0 mm
DIN: 6499
Form: B
Max. concentricity: 0,005 mm

Manufacturer part no.: 0426E2,5RD GER16-B (FM4948-B)

EAN no.: 4054631174896

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN solid carbide end mill, X-long diameter 8.0 x 12 x 60 x 100 mm, T=4 RT65
    84,40 €
  • ATORN SC radius cutter, extra-long diameter 8.0 x 12 x 80 x 150 mm T=2 RT52
  •
    ATORN SC radius cutter, extra-long diameter 12.0 x 16 x 110 x 150 mm T=2 RT52
  •
    ATORN SC radius cutter, extra-long diameter 10.0 x 14 x 100 x 150 mm T=2 RT65
  •
    ATORN SC radius cutter, extra-long diameter 12.0 x 16 x 110 x 150 mm T=2 RT65
  •
    LIZZARD Spannzange ER 32 HP Ø 18,5 Gummi abgedichtet Rundlauf 0,005 mm
    67,01 €

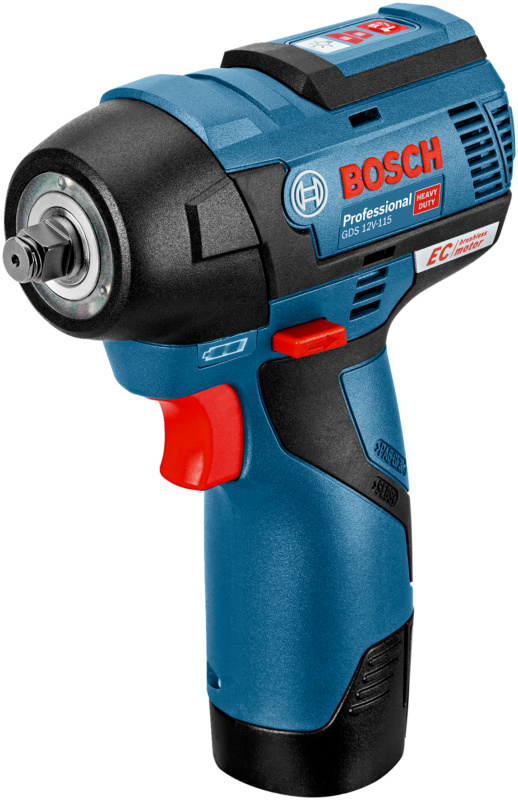

  • Li-ion GDS 10.8 V-EC cordl. rot. impact driver 2.0 Ah speed 0-1,200/0-2,600 min.
  •
