ATORN reducing sleeve 20 mm/4mm, sealed

ATORN reducing sleeve 20 mm/4mm, sealed

ATORN reducing sleeve 20 mm/4mm, sealed
Item no: 1021581 099

Online price:

Available in 4-6 working days.

Application
For reducing the clamping diameter. For drilling, reaming, milling and sharpening tools.

Execution
  • Suitable for all expansion chucks
  • Polished

Delivery
1x sealed reducing sleeve

Notes
Caution: Never clamp without a tool - the reducing sleeve will be damaged.

Brand: ATORN
Chuck clamping diameter (Futter-Spanndurchmesser d1): 20 mm
Clamping diameter (Spanndurchmesser d): 4 mm
Collar diameter (Bunddurchmesser d2): 25 mm
Insertion depth (Einstecktiefe l2): 28 mm
Max. insert depth (Einsatztiefe l): 54 mm
Length (Länge L1): 50 mm
Concentricity tolerance: 0,003 mm
Coolant supply: Yes

ATORN-No.: 20800126

EAN no.: 4050293200980

Product Datasheet
Additional articles

Please select a button.

Replacement article
Versions
loading
Keywords:

[Text nicht gefunden]

  • Interch. head holder, long, 15.8 x 150 mm, for reamer interch. head no. 11785
    188,13 €
  • ATORN reducing sleeve 20 mm/3mm, sealed
    128,64 €
  • ATORN reducing sleeve 20 mm/5mm, sealed
    128,64 €
  • ATORN reducing sleeve 20 mm/6mm, sealed
    122,88 €
  • ATORN reducing sleeve 32mm d1= 6mm
  •
    ATORN plain jaws for interchangeable jaw grips f centre clamping device RS-Z 125
    464,00 €
  • Wall display panel system Vario® Wall 5 360x325x260 mm blue
    51,59 €
  • Slotted plates sheet steel 500 x 450 RAL 7035 light grey
    53,96 €

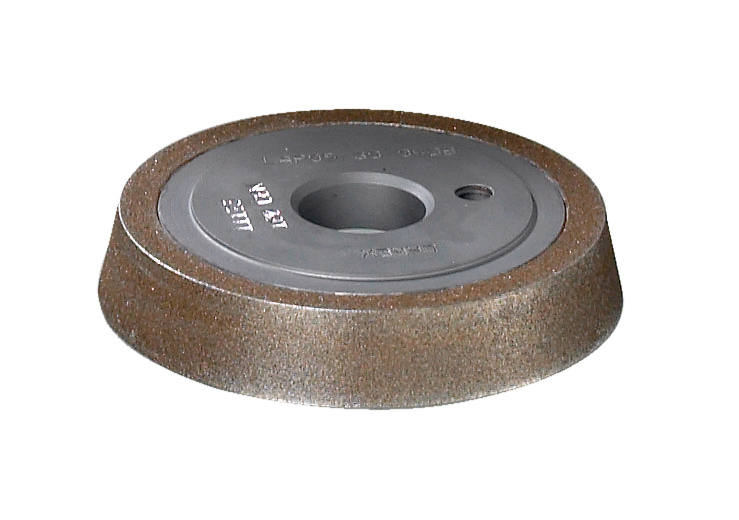

  • CBN sanding disc K180 for DAREX V-391
    464,00 €

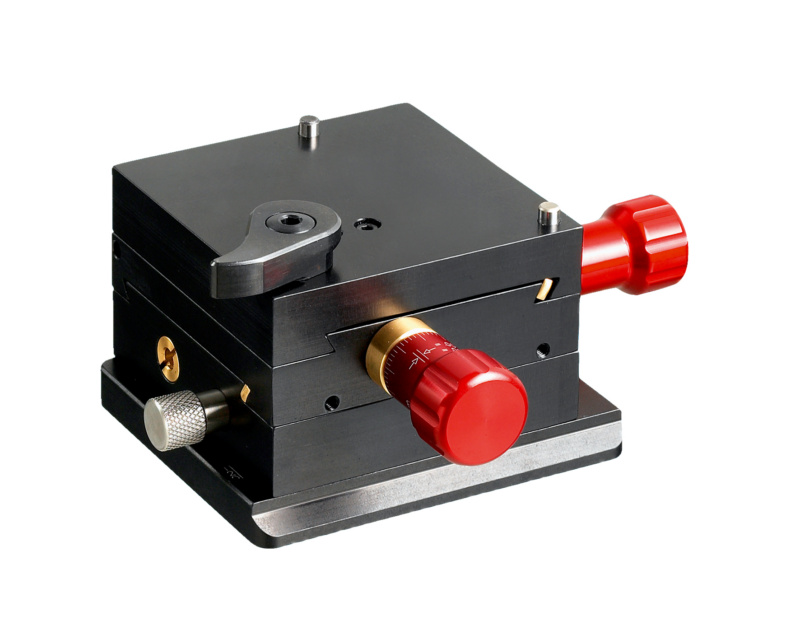

  • Cross table for step drill bit + countersink option
  •
