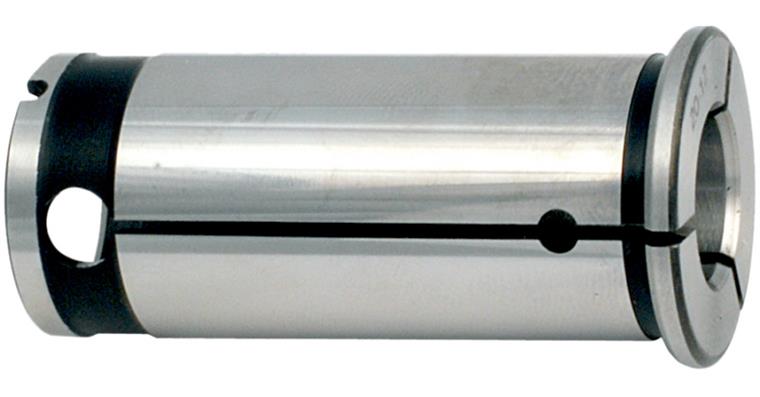

ATORN reducing sleeve 32 mm/6mm, sealed

ATORN reducing sleeve 32 mm/6mm, sealed

ATORN reducing sleeve 32 mm/6mm, sealed
Item no: 1021581 113

Online price:

Available in 4-6 working days.

Application
For reducing the clamping diameter. For drilling, reaming, milling and sharpening tools.

Execution
  • Suitable for all expansion chucks
  • Polished

Delivery
1x sealed reducing sleeve

Notes
Caution: Never clamp without a tool - the reducing sleeve will be damaged.

Brand: ATORN
Chuck clamping diameter (Futter-Spanndurchmesser d1): 32 mm
Clamping diameter (Spanndurchmesser d): 6 mm
Collar diameter (Bunddurchmesser d2): 36 mm
Insertion depth (Einstecktiefe l2): 36 mm
Max. insert depth (Einsatztiefe l): 64 mm
Length (Länge L1): 60 mm
Concentricity tolerance: 0,003 mm
Coolant supply: Yes

ATORN-No.: 20800134

EAN no.: 4050293201062

Product Datasheet
