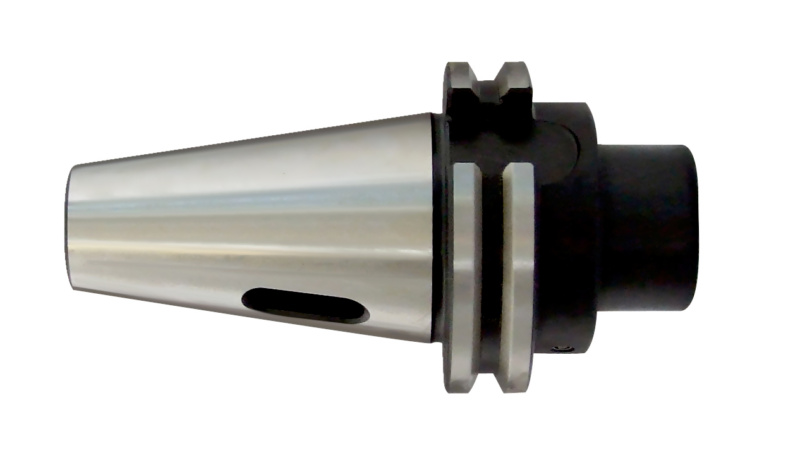

Taper sleeve DIN 69871 ext. cone SK50 int. cone MT3 weighted G2.5 25,000 rpm

Taper sleeve DIN 69871 ext. cone SK50 int. cone MT3 weighted G2.5 25,000 rpm

1021609314 Taper sleeve DIN 69871 ext. cone SK50 int. cone MT3 weighted G2.5 25,000 rpm
Item no: 1021609 314

Online price:

Available in 8-10 working days.

Application
For mounting tools with MK shanks and flat tangs.

Execution
  • Precision design
  • Precision-balanced, G 2.5 - 25,000 rpm
  • Max. concentricity less than 0.005 mm

Notes
For pull studs, see art. no. 1021733-1021740.

Brand: HHW
Mount, on tool side (MK): MK 3
Projecting length (A): 65,0 mm
Outer diameter (D): 40,0 mm
Tool holding device: SK 50
Concentricity tolerance: 0,005 mm
Construction length: Short
Coolant supply: Internal
Standard shank design: DIN 69871-1 AD
Tightening thread: M24

EAN no.: 4024496060191

Product Datasheet
