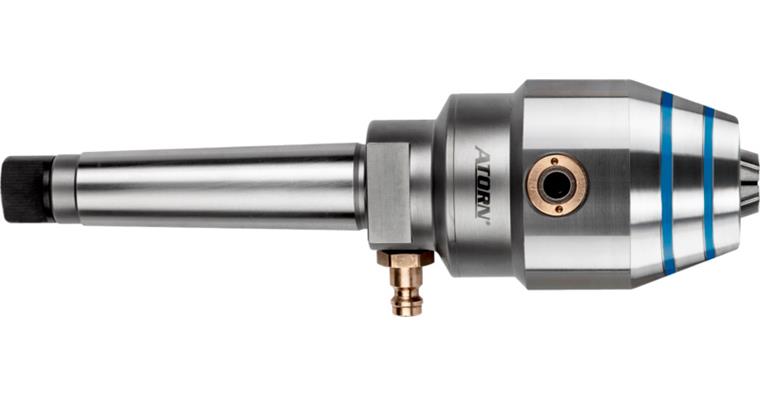

ATORN CNC precision drill chuck 2.5-16 mm MK3 with IC

ATORN CNC precision drill chuck 2.5-16 mm MK3 with IC

ATORN CNC precision drill chuck 2.5-16 mm MK3 with IC
Item no: 1021653 144

Online price:

Available in 5-7 working days.

Application
For use on conventional lathes and CNC machines for drilling, reaming, countersinking.

Execution
  • Integrated spur gear ensures high retaining torque
  • Glass bead blasted
  • Drill chuck with sealing washer (dia. 5 mm) integrated in the drill chuck head, for cooling channel drill dia. 8-16 mm with smooth shank in accordance with DIN 6535, moulded sealing washer (dia. 2 mm) included in the scope of delivery, for cooling channel equipped drill bit dia. 2.5-8 mm with smooth shank in accordance with DIN 6535, shape HA
  • With internal cooling by means of lateral coolant connection

Advantage
  • Wear parts hardened and polished for a long service life
  • Remains securely clamped even if the spindle stops suddenly

Delivery
1x CNC precision drill chuck; incl. accessories

Notes
This precision drill chuck is designed for use on lathes in fixed tailstocks (non-rotating drill chuck).

Brand: ATORN
Morse taper size (MK): MK 3
Min./max. clamping width (d1): 0.5-16 mm
Outer diameter (D): 57 mm
Length (A): 104 mm
Length 2 (L1 max.): 110 mm

ATORN-No.: 21044991

EAN no.: 4050293433739

Product Datasheet
