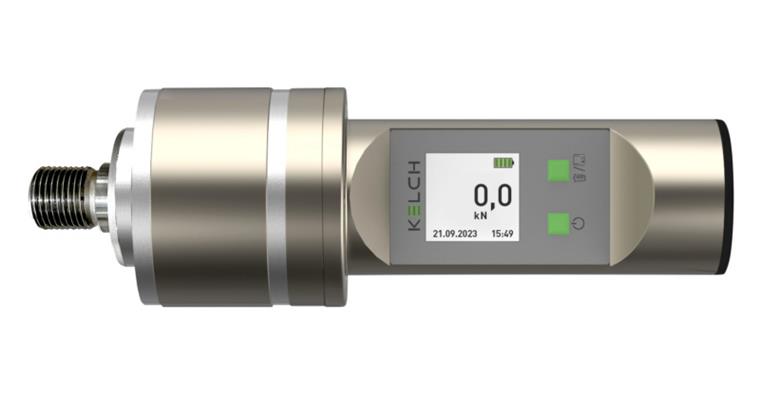

Basisgerät Safecontrol 4.0 100KN

Basisgerät Safecontrol 4.0 100KN

Basisgerät Safecontrol 4.0 100KN
Item no: 1021763 001

Online price:

Will be ordered for you

Application
Digital measuring system for measuring the pull-in forces of machine tool spindles as well as clamping tool extensions, reducers and zero-point clamping systems. For quality assurance, process and occupational safety.

Execution
  • One basic device for all adapters (HSK, PSC and SK)
  • Measurements displayed on screen
  • The display view adjusts to the position
  • Data transfer via USB interface or Bluetooth (via free app for tablet + PC)
  • Features available via free APP: Assign machine spindles via QR code, live transmission of measured values to the mobile device, manage machine spindles, display measured values as a CSV file and line diagram, statistical function, print measurement results, calibration monitoring

Advantage
  • only the basic device needs to be recalibrated
  • regular inspections can reduce machine damage and the resulting follow-up costs

Delivery
1x basic device
Functional description and test certificate
USB cable
Without case and tablet

Notes
Measuring adapter must be ordered separately.

Brand: KELCH
Min./max. force of measuring range: 0-100 kN
Measuring accuracy: +/- 0.5 %
IP protection class: IP 64
Weight: 1,6 kg
Width x height x depth: 65 x 200 x 65 mm
Display: LCD

Manufacturer part no.: 309.300

EAN no.: 4024496192823
