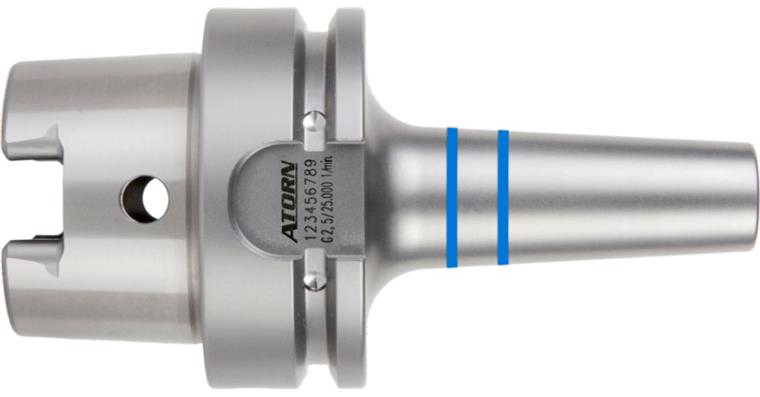

ATORN shrink-fit chuck 3° HSK63 (ISO 12164) dia. 20 mm A=120 mm

ATORN shrink-fit chuck 3° HSK63 (ISO 12164) dia. 20 mm A=120 mm

ATORN shrink-fit chuck 3° HSK63 (ISO 12164) dia. 20 mm A=120 mm
Item no: 1021803 220

Online price:

Still in stock: 3

Application
For clamping milling tools and drill bits with h6 shaft tolerance. Suitable for heavy-duty machining and all high-power applications. Suitable for inductive, contact and hot air shrinking devices.

Execution
  • Shrink grip and shrink release of carbide and HSS tools
  • Hardness 52 + 2 HRC
  • Maximum coolant pressure 80 bar
  • 4 additional drill holes for fine balancing
  • Adjustment travel 10 mm, can be adjusted on both sides
  • Glass bead blasted

Advantage
  • Slim design, extremely low interference contour
  • High transmittable torques
  • High positioning and repeat accuracy
  • Ideal for high rotation speeds

Delivery
1x shrink-fit chuck 3° HSK63 (ISO 12164).

Notes
The previous standard DIN 69871 was superseded by ISO 12164.

Brand: ATORN
Tool holding device: HSK 63
Clamping diameter (d): 20 mm
Projecting length (A): 120 mm
Tapered diameter (d2): 26 mm
Diameter (d3): 35 mm
Clamp in depth (l2): 52 mm
Suitable for thread ( G): M12 x 1
Width across flats: 5 mm
Max. adjustment travel (V): 10 mm
Concentricity tolerance: 0,003 mm
Coolant supply: Internal axial
Balancing quality: G 2.5 at 25,000 rpm

ATORN-No.: 21044818

EAN no.: 4050293409079

Product Datasheet
