ATORN shrink-fit chuck 3° HSK63 (ISO 12164) dia. 18 mm A=160 mm

ATORN shrink-fit chuck 3° HSK63 (ISO 12164) dia. 18 mm A=160 mm

ATORN shrink-fit chuck 3° HSK63 (ISO 12164) dia. 18 mm A=160 mm
Item no: 1021803 318

Online price:

Available in 5-7 working days.

Application
For clamping milling tools and drill bits with h6 shaft tolerance. Suitable for heavy-duty machining and all high-power applications. Suitable for inductive, contact and hot air shrinking devices.

Execution
  • Shrink grip and shrink release of carbide and HSS tools
  • Hardness 52 + 2 HRC
  • Maximum coolant pressure 80 bar
  • 4 additional drill holes for fine balancing
  • Adjustment travel 10 mm, can be adjusted on both sides
  • Glass bead blasted

Advantage
  • Slim design, extremely low interference contour
  • High transmittable torques
  • High positioning and repeat accuracy
  • Ideal for high rotation speeds

Delivery
1x shrink-fit chuck 3° HSK63 (ISO 12164).

Notes
The previous standard DIN 69871 was superseded by ISO 12164.

Brand: ATORN
Tool holding device: HSK 63
Clamping diameter (d): 18 mm
Projecting length (A): 160 mm
Tapered diameter (d2): 24 mm
Diameter (d3): 36 mm
Clamp in depth (l2): 50 mm
Suitable for thread ( G): M12 x 1
Width across flats: 5 mm
Max. adjustment travel (V): 10 mm
Concentricity tolerance: 0,003 mm
Coolant supply: Internal axial
Balancing quality: G 2.5 at 25,000 rpm

ATORN-No.: 21044828

EAN no.: 4050293409178

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Hinged door useful height 700 mm 1 door RAL 5012 for cabinet 705x736 mm
  •
    Cabinet workbench model 108 V beech solid plate height 900 mm RAL 7035/5012
  •
    Collet chuck DIN 69871 AD/B ER11 L long, slim SK40 100x16 Mini
    182,91 €
  • Cabinet workbench model 131 V beech solid plate height 900 mm RAL 7035/5010
  •
    Cabinet workbench model 122 V beech solid plate height 850 mm RAL 7035/5010
  •
    ATORN shrink-fit chuck 3° HSK63 (ISO 12164) dia. 6 mm A=120 mm
  •

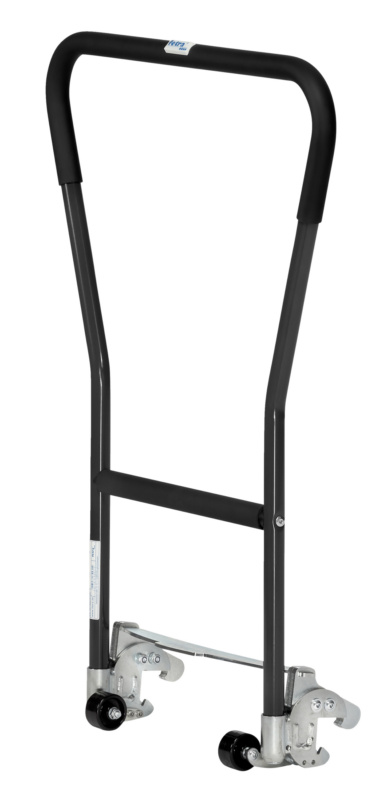

    Clip-on push handle RAL7016
