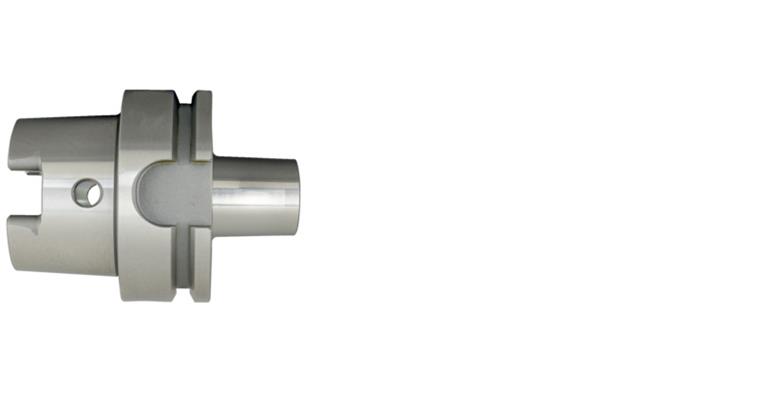

Mill arbor for screw-on mill cutters DIN 69893 A HSK-A63 diameter 17 x 25 mm

Mill arbor for screw-on mill cutters DIN 69893 A HSK-A63 diameter 17 x 25 mm

Mill arbor for screw-on mill cutters DIN 69893 A HSK-A63 diameter 17 x 25 mm
Item no: 1021841 114

Online price:

Available in 8-10 working days.

Execution
Hollow shank taper with gripper groove, concentricity between the taper and internal cone less than or equal to 0.008 mm. Pre-balanced according to G 6.3-15,000 rpm


Brand: HHW
Adapter diameter (d): 17,0 mm
Tapered diameter (d2): 29,0 mm
Outer diameter (D): 29,0 mm
Projecting length (A): 51,0 mm
Clearance length to collar (L): 25,0 mm
Suitable for thread (g): M16
Balancing quality: G 2.5 at 25,000 rpm
Coolant supply: Internal
Form: A
Max. concentricity: 0,008 mm
Tool holding device: HSK 63

EAN no.: 4024496064519

Product Datasheet
