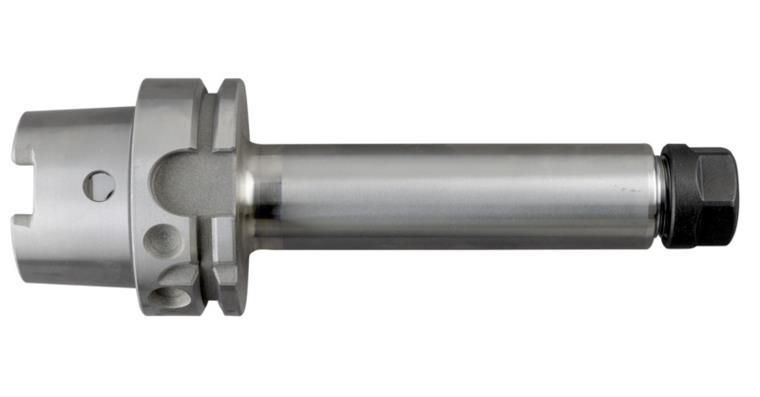

Collet chuck DIN 69893 long HSK-A63 ER16 clamping range 1-10 mm A=160 mm

Collet chuck DIN 69893 long HSK-A63 ER16 clamping range 1-10 mm A=160 mm

Collet chuck DIN 69893 long HSK-A63 ER16 clamping range 1-10 mm A=160 mm
Item no: 1021843 102

Online price:

Available in 8-10 working days.

Application
For clamping tools with straight shanks in collet chucks in accordance with DIN 6499, shape A and B.

Execution
  • Precision design
  • Precision-balanced, G 2.5 - 25,000 rpm
  • With Balluff chip bore
  • With hexagon nut
  • Max. concentricity less than 0.005 mm

Notes
For collet chuck sets, see art. no. 1021519.
For collet chucks, see art. no. 1021520-1021525 and 1021534-1021539.
Coolant tube, see art. no. 1021864.
Key for coolant tube, see art. no. 1021865.

Brand: HHW
Tool holding device: HSK A63
Collet type: ER 16 (426 E)
Clamping nut type: ER 16
Min./max. clamping range: 1.0-10.0 mm
Outer diameter (D): 32,0 mm
Projecting length (A): 160,0 mm
Balancing quality: G 2.5 at 25,000 rpm
Concentricity tolerance: 0,005 mm
Construction length: Long

EAN no.: 4024496064571

Product Datasheet
