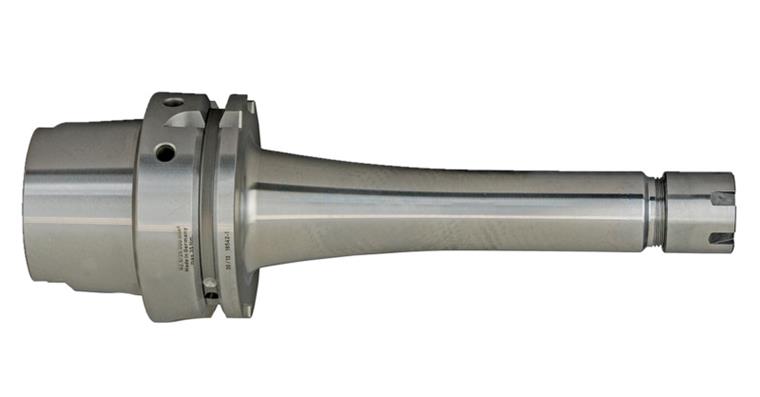

ER collet chuck DIN 69893 A, HSK 63XL 11 mm clamping range 1-7 mm

Versions

Item no: 1021845 102

Online price:

Catalogue price: You save:

Available in 6-8 working days.

Min. order quantity: 1

Application
For clamping tools with straight shanks in collet chucks ER/ESX. For machine tools with automatic tool change.

Execution
Concentricity deviation between the taper and internal cone less than or equal to 0.003 mm. Chuck drilled through, with female thread for length-adjusting screw. Finely balanced to G 2.5-25,000 rpm

Notes
For ER collet chucks, see art. no. 1021520/1021521/1021523 and 1021534/1021535/1021537.

Brand: HHW
Tool holding device: HSK A63
Collet type: ER 11 (4008 E)
Min./max. clamping range: 1.0-7.0 mm
Outer diameter (D): 16,0 mm
Projecting length (A): 160,0 mm
Balancing quality: G 2.5 at 25,000 rpm
Concentricity tolerance: 0,003 mm

EAN no.: 4024496064656

Product Datasheet
