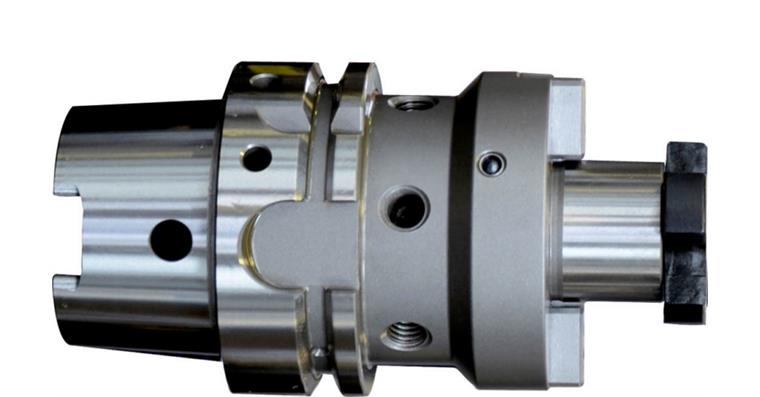

Face mill arbor with CCB DIN 69893 HSK 63 22 mm

Face mill arbor with CCB DIN 69893 HSK 63 22 mm

Face mill arbor with CCB DIN 69893 HSK 63 22 mm
Item no: 1021859 102

Online price:

Still in stock: 1

Execution
  • Ground taper shank, mounting spigot and contact surface
  • Hard-turned shank
  • With Balluff chip bore
  • With coolant channel bores (CCB)

Delivery
With cutter retaining screw.


Brand: ---
Tool holding device: HSK A63
Form: A
Mandrel diameter (d1): 22,0 mm
Tap length (L1): 19,0 mm
Projecting length (A): 50,0 mm
Outer diameter (D): 48,0 mm
Coolant supply: Internal
Balancing quality: G 2.5 at 25,000 rpm
Construction length: Short
Max. concentricity: 0,006 mm

EAN no.: 4024496065417

Product Datasheet
