Indexable insert drill chuck dia. 30mm f. drill dia. 20mm, IC, sh. E1, DIN 69882

Indexable insert drill chuck dia. 30mm f. drill dia. 20mm, IC, sh. E1, DIN 69882

Indexable insert drill chuck dia. 30mm f. drill dia. 20mm, IC, sh. E1, DIN 69882
Item no: 1021920 203

Online price:

Available in 8-10 working days.

Application
For mounting indexable insert drills.

Execution
  • Type E1, axial
  • With internal coolant supply
  • 20MnCr5 hardened to 60 +/- 2 HRC
  • Completely burnished and all functional surfaces ground
  • With ball spray nozzle and threaded connector for tube fittings


Brand: LIZZARD
VDI mount diameter (VDI Aufnahmedurchmesser d): 30 mm
Clamping diameter (Spanndurchmesser d1): 20 mm
Outer diameter (D1): 40 mm
Projecting length (l): 66 mm
Collar diameter (D): 68 mm
Height (h): 28 mm
Coolant supply: Internal
Collar height (l1): 22 mm

EAN no.: 4024496065943

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Prot. lens mirror prot. lens 90x110 mm prot. level 9 DIN for cat. 70851-70853
  •
    Indexable insert drill chuck dia. 20mm f. drill dia. 25mm, IC, sh. E1, DIN 69881
    130,67 €
  • Replacement jaws Cekaba pair for 27 510 102 jaw width 100 mm
  •
    Indexable insert drill chuck dia. 50mm f. drill dia. 25mm, IC, sh. E1, DIN 69890
    64,40 €
  • Cone brush dia. 125 mm, INOX wire 0.35 mm, thread M14, wire length 19 mm
    56,62 €
  • Lathe chuck flange for chuck dia. 250 mm DIN 55027 short taper size 8
    352,44 €

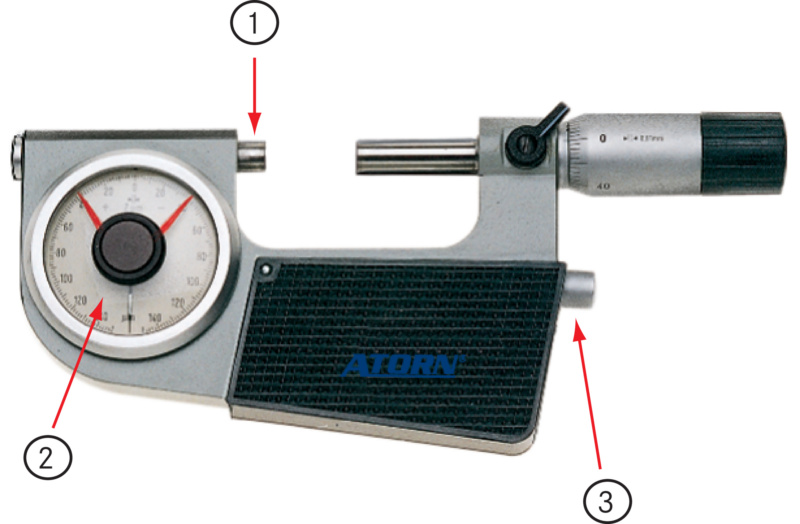

  • ATORN precision pointer micrometer 25-50 mm 0.001 mm, DIN 863
  •
    Indexable insert drill chuck dia. 30mm f. drill dia. 25mm, IC, sh. E1, DIN 69883
  •
    Indexable insert drill chuck dia. 50mm f. drill dia. 20mm, IC, sh. E1, DIN 69889
  •
    ATORN HPC 45 degree face milling cutter head, diameter 160.00 mm Z=13
    1.668,48 €

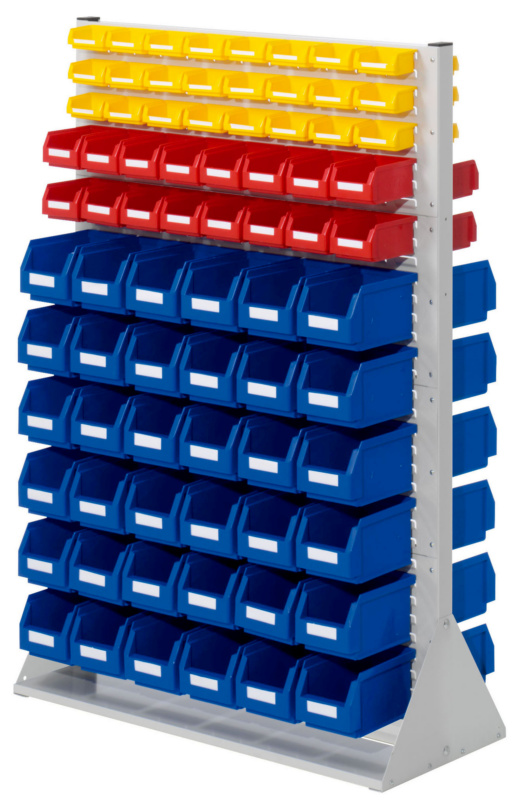

  • Partition 1450x1000x430mm dbl-sided w/ easy-view storage bins 72xS6 32xS7 48xS8
  •
