Collet chuck ER dia. 40 clamping range 2-20 coolant supply shape E4 DIN 69880

Versions

Item no: 1021926 205

Online price:

Catalogue price: You save:

Still in stock: 3

Min. order quantity: 1

Application
For centring and drilling.

Execution

Type E4, axial
Coolant supply through the collet chuck
20MnCr5 hardened to 60 +/- 2 HRC
Completely burnished and all functional surfaces ground
With ball spray nozzle and threaded connector for tube fittings

Notes
For collet chucks, see art. nos. 1021519-1021528.

Brand: LIZZARD
VDI mount diameter (VDI Aufnahmedurchmesser d): 40 mm
Collet type: ER 32 (470 E)
Min./max. clamping range: 2-20 mm
Projecting length (l): 75 mm
Outer diameter (D1): 50 mm
Height (h): 32,5 mm
Collar diameter (D): 83 mm
Max. clamping range: 20 mm
Min. clamping range: 2 mm
Collar height (l1): 22 mm

EAN no.: 4024496066643

Product Datasheet

Versions

Keywords:

[Text nicht gefunden]

ATORN metal circ saw blade, SC, finely toothed, 80 mm x 2 mm x 22 mm A T=80
Indexable milling insert TNGX 100408SR-F:8215
ATORN indexable insert CNMG 120404-FFP ATU10T

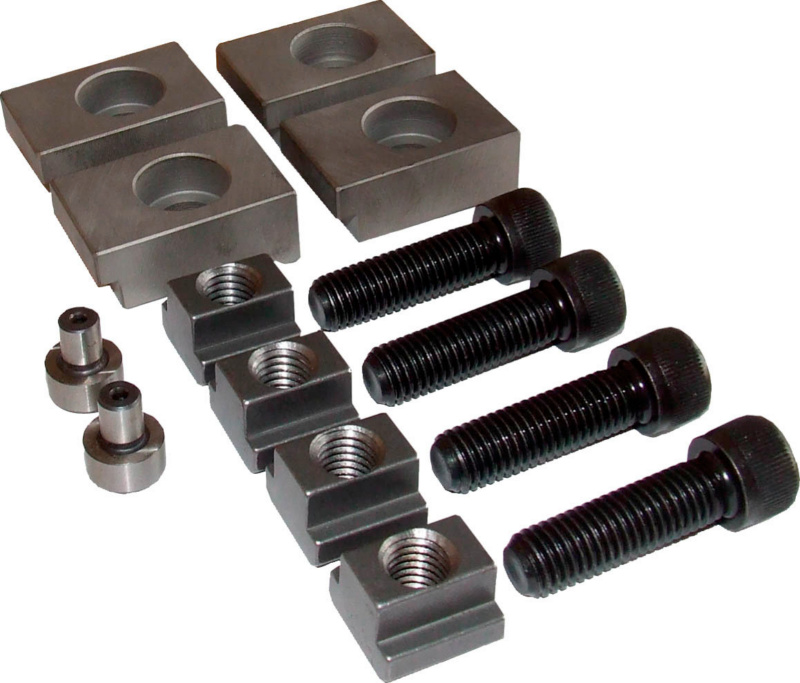

Fastening material j/wdth=100 mm f. mech. cen. clamp. dev. MZE cat.no. 27591 105
Fastening material j/wdth=125 mm f. mech. cen. clamp. dev. MZE cat.no. 27591 106

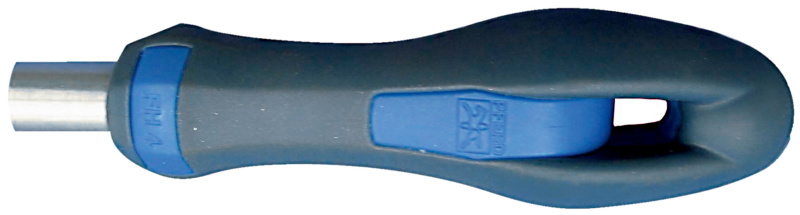

Quick-change handle for int. cleaning brushes w/ 3/8in thr. cat.no. 47630-47632
VDE interch. blade slot PH1 x 154 mm f. VDE hand grip cat. no. 52503 100
Lubricator SF 01 perma CLASSIC for universal lubricating grease

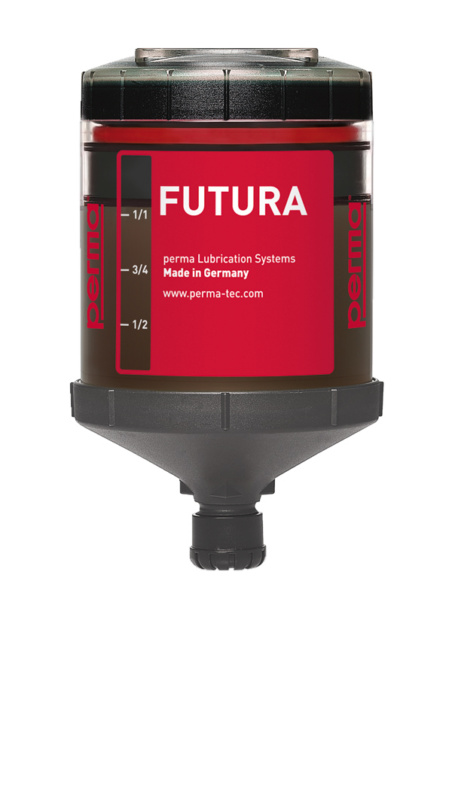

Lubricator SF 01 perma FUTURA for universal lubricating grease
