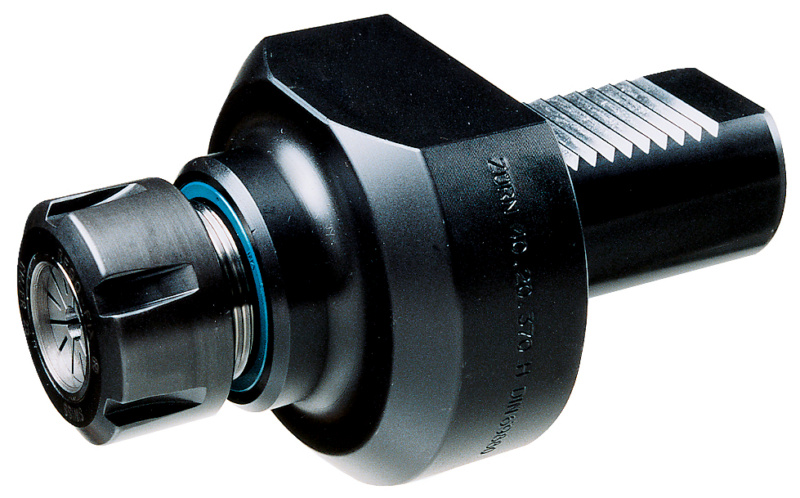

Tapping chuck WFLC DIN 69880 shank dia. 40 mm M6-M20

Tapping chuck WFLC DIN 69880 shank dia. 40 mm M6-M20

Tapping chuck WFLC DIN 69880 shank dia. 40 mm M6-M20
Item no: 1021935 205

Online price:

Still in stock: 1

Application
For mounting threaded quick-change inserts.

Execution
  • With length compensation under compression and tension
  • 20MnCr5 hardened to 60 +/- 2 HRC
  • Completely burnished and all functional surfaces ground
  • With ball spray nozzle and threaded connector for tube fittings

Notes
For quick-change inserts, see art. nos. 1021459-1021460.

Brand: LIZZARD
VDI mount diameter (VDI Aufnahmedurchmesser dh6): 40 mm
For insert size (Einsatzgröße d2): 2
Suitable for thread: M6-M20
Pressure length compensation: 15 mm
Tension length compensation: 15 mm
Projecting length (A): 77 mm
Outer diameter (D1): 55 mm

EAN no.: 4024496066803

Product Datasheet
