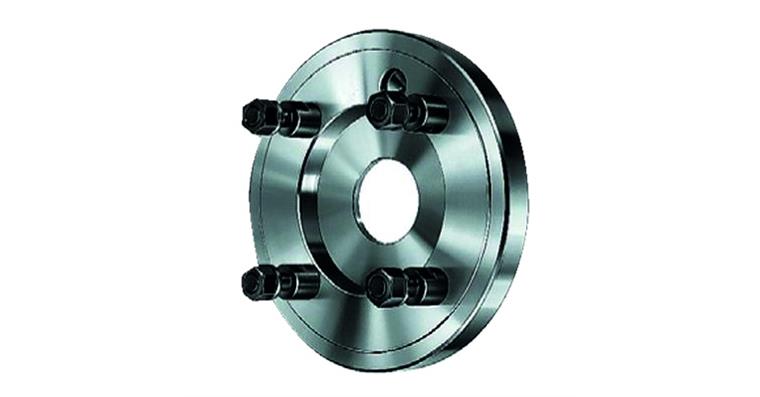

Lathe chuck flange for chuck dia. 250 mm DIN 55027 short taper size 8

Lathe chuck flange for chuck dia. 250 mm DIN 55027 short taper size 8

Lathe chuck flange for chuck dia. 250 mm DIN 55027 short taper size 8
Item no: 1026035 207

Online price:

Available in 8-10 working days.

Application
Mounting lathe chucks and face plates with centring mount in accordance with DIN 6350.

Execution
  • Short taper adapter in accordance with DIN 55027 (DIN 55022 with bayonet disc fastener) with stud bolt and collar nut
  • Cast body, machined on machine side, faced on chuck side

Notes
Flanges for long taper adapters and made of steel on request.

Brand: RÖHM
Taper shank size: 8
Flange diameter (Flansch-Ø A): 250 mm
Taper diameter (Kegel-Ø): 139,719 mm
Pitch circle diameter (Lochkreis-Ø): 171,4 mm
Flange thickness (Flanschdicke B): 26 mm
DIN: 55027

Manufacturer part no.: 106782319-32-00

EAN no.: 4019208078724

Product Datasheet
